FMCA3034-48
ActiveFairview Microwave
CBL ASSY MMCXPLUG-SMAPLUG 48
FMCA3034-48
ActiveFairview Microwave
CBL ASSY MMCXPLUG-SMAPLUG 48
Description
General part information
FMCA3034-48

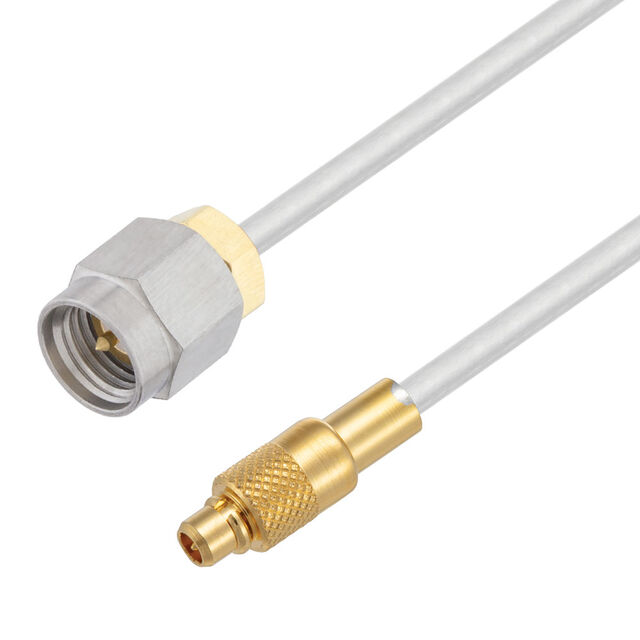

Cable Assembly Coaxial SMA to MMCX Hand Formable .047 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA3034-48 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MMCX Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Hand Formable |
| Cable Type Size | 0.047 |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 48 in |
| Overall Impedance | 50 Ohms |
| Style | SMA, MMCX |
