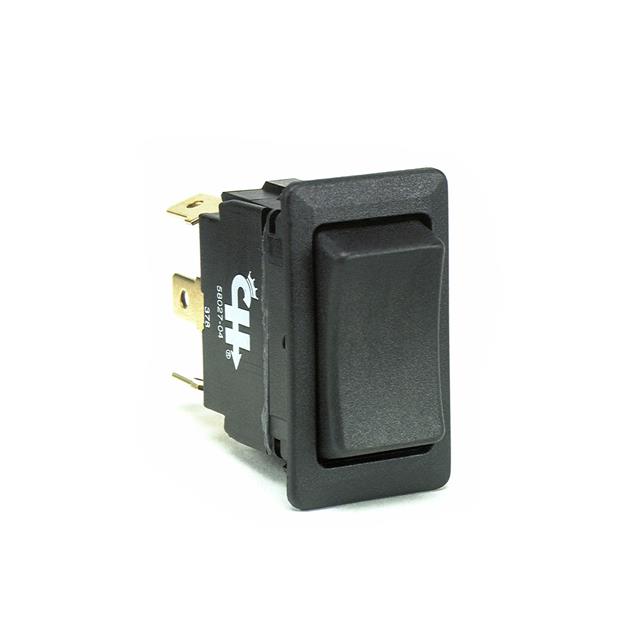

58027-04

Active

Cole Hersee

SWITCH ROCKER SPDT 15A 24V

Search across all available documentation for this part.

Active

Cole Hersee

SWITCH ROCKER SPDT 15A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 15A (DC) Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	58027-04	58027 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Concave (Curved)	Concave (Curved)
Circuit	SPDT	DPDT, SPST, DPST, SPDT, SPST-NO
Color - Actuator/Cap	Black	Black
Current Rating (Amps)	15 A	15 A
Ingress Protection	IP66	IP66
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	36.83 mm	36.83 mm
Panel Cutout Dimensions [y]	21.08 mm	21.08 mm
Switch Function	Mom-Off-Mom	On-Off-On, On-Off, On-On, Mom-Off-Mom, Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	24 V	24 V

SWITCH ROCKER DPDT 15A 24V

Part	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Ingress Protection	Current Rating (Amps)	Color - Actuator/Cap	Actuator Type	Switch Function	Termination Style	Actuator Marking	Circuit	Mounting Type	Voltage Rating - DC
Cole Hersee 58027-07	21.08 mm	36.83 mm	IP66	15 A	Black	Concave (Curved)	On-Off-On	Quick Connect - 0.250" (6.3mm)	No Marking	DPDT	Panel Mount, Snap-In	24 V
Cole Hersee 58027-01	21.08 mm	36.83 mm	IP66	15 A	Black	Concave (Curved)	On-Off	Quick Connect - 0.250" (6.3mm)	No Marking	SPST	Panel Mount, Snap-In	24 V
Cole Hersee 58027-06	21.08 mm	36.83 mm	IP66	15 A	Black	Concave (Curved)	On-Off	Quick Connect - 0.250" (6.3mm)	No Marking	DPST	Panel Mount, Snap-In	24 V
Cole Hersee 58027-03	21.08 mm	36.83 mm	IP66	15 A	Black	Concave (Curved)	On-Off-On	Quick Connect - 0.250" (6.3mm)	No Marking	SPDT	Panel Mount, Snap-In	24 V
Cole Hersee 58027-08	21.08 mm	36.83 mm	IP66	15 A	Black	Concave (Curved)	On-On	Quick Connect - 0.250" (6.3mm)	No Marking	DPDT	Panel Mount, Snap-In	24 V
Cole Hersee 58027-04	21.08 mm	36.83 mm	IP66	15 A	Black	Concave (Curved)	Mom-Off-Mom	Quick Connect - 0.250" (6.3mm)	No Marking	SPDT	Panel Mount, Snap-In	24 V
Cole Hersee 58027-02	21.08 mm	36.83 mm	IP66	15 A	Black	Concave (Curved)	Off-Mom	Quick Connect - 0.250" (6.3mm)	No Marking	SPST-NO	Panel Mount, Snap-In	24 V
