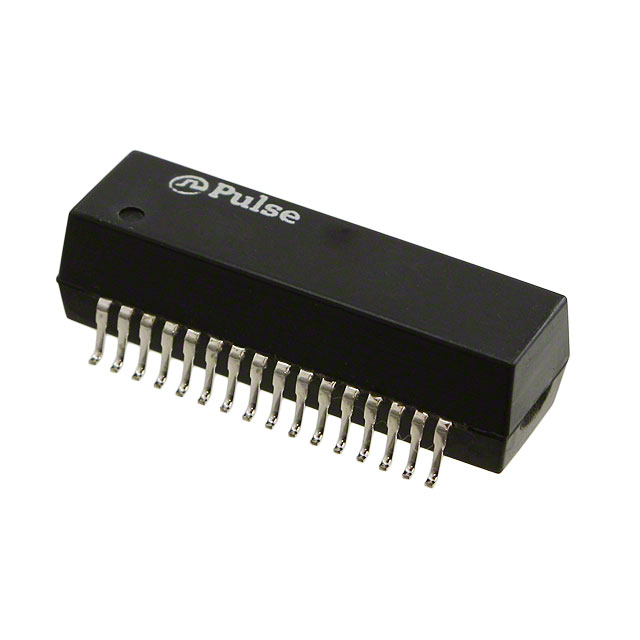

TX1475NLT
ObsoletePulse Electronics
XFRMR OCTAL 1:2/1:1 1.2MH SMD
TX1475NLT
ObsoletePulse Electronics
XFRMR OCTAL 1:2/1:1 1.2MH SMD
Description
General part information
TX1475NLT
1.2mH T1/E1 (Octal) Pulse Transformer 1:2, 1:1 Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | TX1475NLT |
|---|---|
| Height - Seated (Max) | 0.295 in |
| Inductance | 1200 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 0.31 in |
| Transformer Type | T1, E1 (Octal) |
| Turns Ratio - Primary:Secondary | 1:2, 1:1 |
| Weight | 0.1 oz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
