1917121

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 3 POS 7.62MM PITCH PLUG 24-12 AWG SCREW

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 3 POS 7.62MM PITCH PLUG 24-12 AWG SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1917121	GMVSTBR Series

Color	Black	Green, Black
Contact Mating Finish	Tin	Tin
Current - IEC	12 A	12 A
Features	Retention Latches (Wire Side), Mating Flange	Retention Latches (Wire Side), Mating Flange
Housing Material	-	Polyamide (PA), Nylon
Insulation Height	1.024 "	1.024 "
Insulation Height	26.01 mm	26.01 mm
Material Flammability Rating	-	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	-	12
Pitch [x]	0.3 in	0.295 - 0.3 in
Pitch [x]	7.62 mm	7.5 - 7.62 mm
Plug Wire Entry	90 °	90 °
Positions Per Level	3	3 - 12
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw [Max]	0.6 Nm	0.6 Nm
Torque - Screw [Max]	5.3 Lb-In	5.3 Lb-In
Torque - Screw [Min]	4.4 Lb-In	4.4 Lb-In
Torque - Screw [Min]	0.5 Nm	0.5 Nm
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	500 V	1 - 500 kV
Voltage - UL	-	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛	-	0.2 mm˛
Wire Gauge or Range - mm˛	-	2.5 mm˛
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²	0.2 mm²
Wire Strip Length	7 mm	7 mm

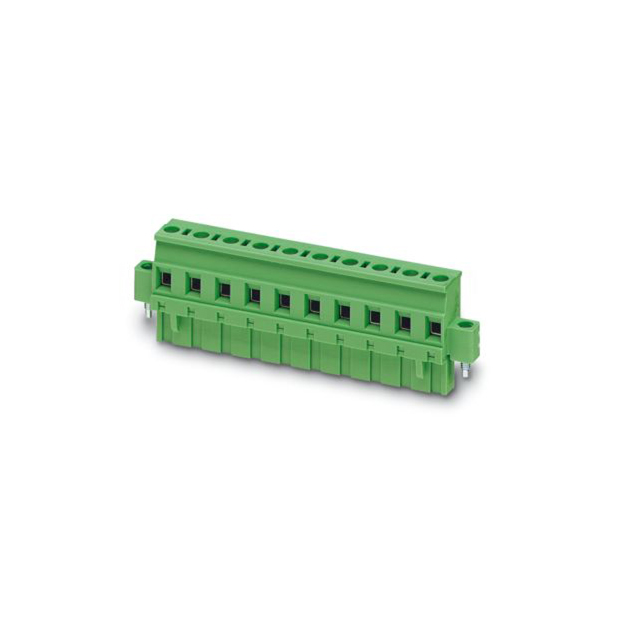

Pluggable Terminal Blocks 12 Pos 7.5mm pitch Plug 24-12 AWG Screw

Part	Number of Levels	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Positions Per Level	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Torque - Screw [Min]	Type	Mounting Type	Termination Style	Current - IEC	Insulation Height	Insulation Height	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Mating Finish	Number of Positions	Wire Strip Length	Voltage - UL	Housing Material	Color	Voltage - IEC	Pitch [x]	Pitch [x]	Plug Wire Entry	Features	Material Flammability Rating	Screw Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Phoenix Contact 1737806	1	0.2 mm˛	2.5 mm˛	12	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	Plug, Female Sockets	Free Hanging (In-Line)	Screw - Rising Cage Clamp	12 A	1.024 "	26.01 mm	30 AWG	12 AWG	Tin	12	7 mm	300 V	Polyamide (PA), Nylon	Green	1 kV	0.295 in	7.5 mm	90 °	Retention Latches (Wire Side)	UL94 V-0	M3
Phoenix Contact 1917121	1			3	0.6 Nm	5.3 Lb-In	4.4 Lb-In	0.5 Nm	Plug, Female Sockets	Free Hanging (In-Line)	Screw - Rising Cage Clamp	12 A	1.024 "	26.01 mm	30 AWG	12 AWG	Tin		7 mm			Black	500 V	0.3 in	7.62 mm	90 °	Mating Flange, Retention Latches (Wire Side)		M3	0.2 mm²	2.5 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 12 Pos 7.5mm pitch Plug 24-12 AWG Screw
