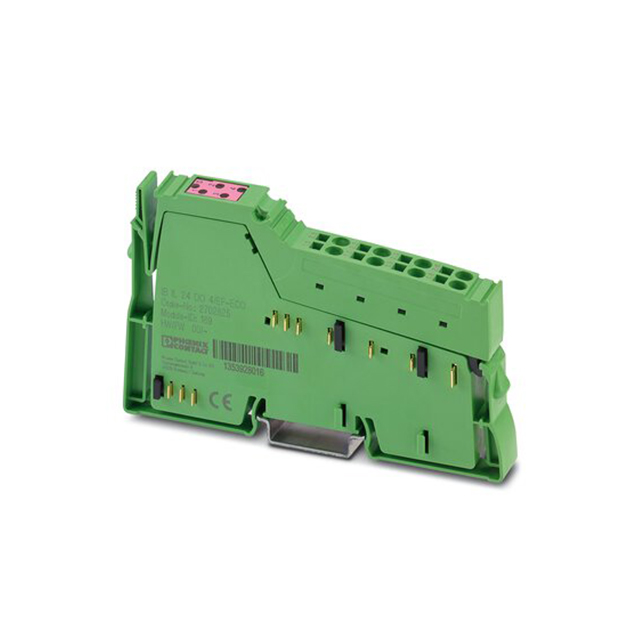

OUTPUT MODULE 4 SOL ST 19.2-24V
2702825
LTBPhoenix Contact
OUTPUT MODULE 4 SOL ST 19.2-24V
Description
General part information
2702825
Output Module DIN Rail 19.2 ~ 24VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | 2702825 |
|---|---|
| Approval Agency | cULus, cUL, UL |
| For Use With/Related Products | Inline Series |
| Ingress Protection | IP20 |
| Mounting Type | DIN Rail |
| Number of Outputs | 4 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Solid State |
| Termination Style | Spring Terminal |
| Type | Output Module |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 19.2 VAC/VDC |
