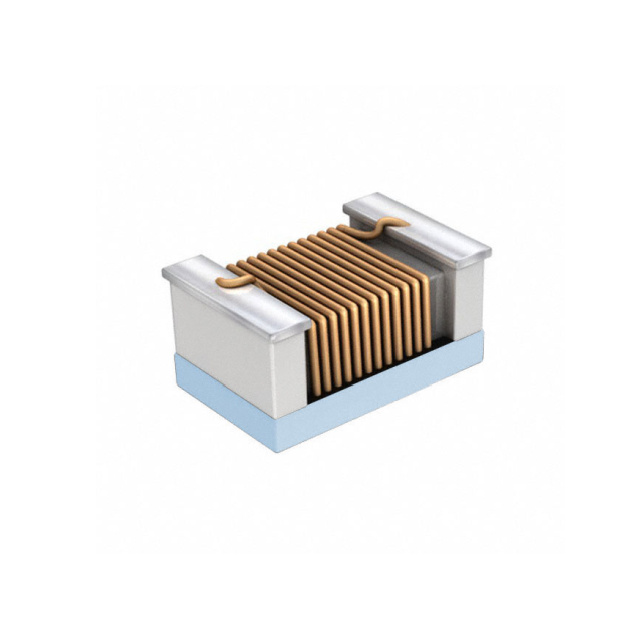

MWSD1005C1N8CTM01

Active

Shenzhen Sunlord Electronics Co., Ltd.

FIXED IND 1.8NH0.16OHM 460MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MWSD1005C1N8CTM01

Active

Shenzhen Sunlord Electronics Co., Ltd.

FIXED IND 1.8NH0.16OHM 460MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MWSD1005C1 Series

1.8 nH Unshielded Drum Core, Wirewound Inductor 460 mA 160mOhm Max 0402 (1005 Metric)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MWSD1005C1N8CTM01	MWSD1005C1 Series

Current Rating (Amps)	460 mA	0.64 - 950 A
DC Resistance (DCR)	-	12 - 100 mOhm
DC Resistance (DCR) [Max]	160 mOhm	28 - 160 mOhm
Frequency - Self Resonant	6 GHz	6 - 18 GHz
Height - Seated (Max) [Max]	0.7 mm	0.65 - 0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.026 - 0.028 in
Inductance	1.8 nH	1 - 1.9 nH
Inductance Frequency - Test	100 MHz	100 - 250 MHz
Material - Core	Ceramic	Ceramic
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	0402 (1005 Metric)	0402 (1005 Metric)
Q @ Freq	10, 250 MHz	10 - 250
Shielding	Unshielded	Unshielded
Size / Dimension [x]	0.043 in	0.043 in
Size / Dimension [x]	1.1 mm	1.1 mm
Size / Dimension [y]	0.024 "	0.021 - 0.024 "
Size / Dimension [y]	0.6 mm	0.53 - 0.6 mm
Supplier Device Package	0402	0402
Tolerance	0.2 nH	0.1 - 10 nH
Type	Wirewound, Drum Core	Wirewound, Drum Core

MWSD1005C1 Series

FIXED IND 1.7NH 640MA 100MOHM SM

Part	Inductance Frequency - Test	Material - Core	Tolerance	Package / Case	Frequency - Self Resonant	Shielding	Supplier Device Package	Inductance	Q @ Freq	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current Rating (Amps)	Type	DC Resistance (DCR)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	DC Resistance (DCR) [Max]
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C1N7DTM01	100 MHz	Ceramic	0.5 nH	0402 (1005 Metric)	6 GHz	Unshielded	0402	1.7 nH	10, 250 MHz	0.043 in	0.024 "	0.6 mm	1.1 mm	0.026 in	0.65 mm	0.64 A	Drum Core, Wirewound	100 mOhm	125 °C	-40 °C	Surface Mount
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C1N5STM81	100 MHz	Ceramic	0.3 nH	0402 (1005 Metric)	18 GHz	Unshielded	0402	1.5 nH	20, 250 MHz	0.043 in	0.021 in	0.53 mm	1.1 mm	0.028 in	0.7 mm	2.1 A	Drum Core, Wirewound		125 °C	-40 °C	Surface Mount	28 mOhm
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C1N0ST	250 MHz	Ceramic	0.3 nH	0402 (1005 Metric)	6 GHz	Unshielded	0402	1 nH	10, 250 MHz	0.043 in	0.024 "	0.6 mm	1.1 mm	0.026 in	0.65 mm	650 mA	Drum Core, Wirewound		125 °C	-40 °C	Surface Mount	85 mOhm
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C1N5CTM01	100 MHz	Ceramic	0.2 nH	0402 (1005 Metric)	6 GHz	Unshielded	0402	1.5 nH	10, 250 MHz	0.043 in	0.024 "	0.6 mm	1.1 mm	0.026 in	0.65 mm	1 A	Drum Core, Wirewound		125 °C	-40 °C	Surface Mount	30 mOhm
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C1N8KTM81	100 MHz	Ceramic	10 %	0402 (1005 Metric)	18 GHz	Unshielded	0402	1.8 nH	20, 250 MHz	0.043 in	0.021 in	0.53 mm	1.1 mm	0.028 in	0.7 mm	1.15 A	Drum Core, Wirewound		125 °C	-40 °C	Surface Mount	65 mOhm
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C1N6CTM81	100 MHz	Ceramic	0.2 nH	0402 (1005 Metric)	18 GHz	Unshielded	0402	1.6 nH	20, 250 MHz	0.043 in	0.021 in	0.53 mm	1.1 mm	0.028 in	0.7 mm	1.45 A	Drum Core, Wirewound	45 mOhm	125 °C	-40 °C	Surface Mount
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C1N8KT	250 MHz	Ceramic	10 %	0402 (1005 Metric)	6 GHz	Unshielded	0402	1.8 nH	20, 250 MHz	0.043 in	0.024 "	0.6 mm	1.1 mm	0.026 in	0.65 mm	950 mA	Drum Core, Wirewound		125 °C	-40 °C	Surface Mount	43 mOhm
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C1N8CTM81	100 MHz	Ceramic	0.2 nH	0402 (1005 Metric)	18 GHz	Unshielded	0402	1.8 nH	20, 250 MHz	0.043 in	0.021 in	0.53 mm	1.1 mm	0.028 in	0.7 mm	1.15 A	Drum Core, Wirewound		125 °C	-40 °C	Surface Mount	65 mOhm
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C1N8DT	250 MHz	Ceramic	0.5 nH	0402 (1005 Metric)	6 GHz	Unshielded	0402	1.8 nH	20, 250 MHz	0.043 in	0.024 "	0.6 mm	1.1 mm	0.026 in	0.65 mm	950 mA	Drum Core, Wirewound		125 °C	-40 °C	Surface Mount	43 mOhm
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C1N7CTM81	100 MHz	Ceramic	0.2 nH	0402 (1005 Metric)	18 GHz	Unshielded	0402	1.7 nH	20, 250 MHz	0.043 in	0.021 in	0.53 mm	1.1 mm	0.028 in	0.7 mm	1.15 A	Drum Core, Wirewound		125 °C	-40 °C	Surface Mount	65 mOhm
