816-AG10D-ES

Obsolete

TE Connectivity AMP Connectors

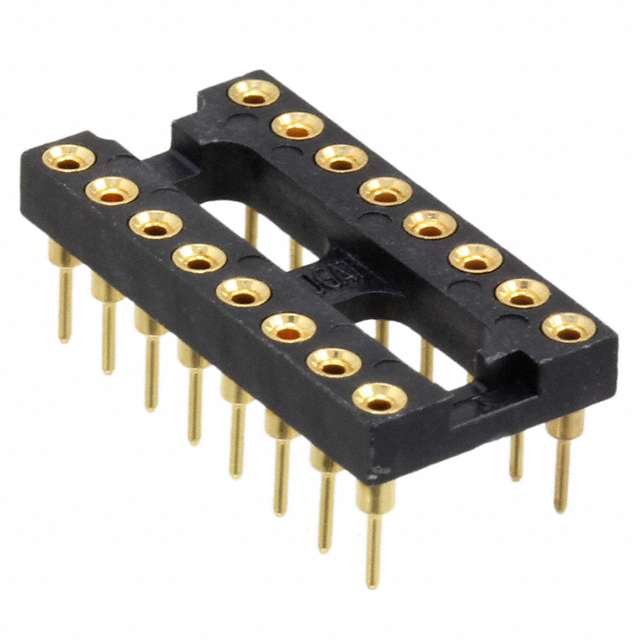

CONN IC DIP SOCKET 16POS GOLD

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN IC DIP SOCKET 16POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	816-AG10D-ES

Contact Finish - Mating	Gold
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Copper Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	16
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

CONN IC DIP SOCKET 16POS GOLD

Part	Pitch - Mating	Pitch - Mating	Contact Resistance	Contact Material - Mating	Housing Material	Features	Contact Material - Post [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Post	Pitch - Post	Type	Type	Type	Termination	Material Flammability Rating	Mounting Type	Number of Positions or Pins (Grid)	Termination Post Length	Termination Post Length	Contact Finish - Mating	Current Rating (Amps)
TE Connectivity AMP Connectors 816-AG10D-ES	0.1 in	2.54 mm	10 mOhm	Beryllium Copper	Polyester	Open Frame	Copper Alloy	105 ░C	-55 °C	2.54 mm	0.1 in	0.3 "	7.62 mm	DIP	Solder	UL94 V-0	Through Hole	16	3.18 mm	0.125 in	Gold	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 (2 x 8) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
