Technical Specifications
Parameters and characteristics for this part
| Specification | 81553 006500 |
|---|---|
| Cable Type | Twinaxial - Plenum |
| Conductor Material | Copper Alloy, Silver Coated |
| Conductor Strand [custom] | 36 AWG |
| Conductor Strand [custom] | 19 Strands |
| Dielectric Diameter [diameter] | 1.07 mm |
| Dielectric Diameter [diameter] | 0.042 in |
| Dielectric Material | Tetrafluoroethylene (TFE) |
| Impedance | 77 Ohms |
| Jacket (Insulation) Diameter [diameter] | 0.129 in |
| Jacket (Insulation) Diameter [diameter] | 3.28 mm |
| Jacket (Insulation) Material | Perfluoroalkoxy (PFA) |
| Jacket Color | Blue |
| Length | 152.4 m |
| Length | 6000 in |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Coverage [custom] | 93 % |
| Shield Material | Copper Alloy, Silver Coated |
| Shield Type | Braid |
| VoP, Velocity of Propagation | 70 |
| Wire Gauge | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 500 | $ 24.05 | |
Description
General part information
81553 Series

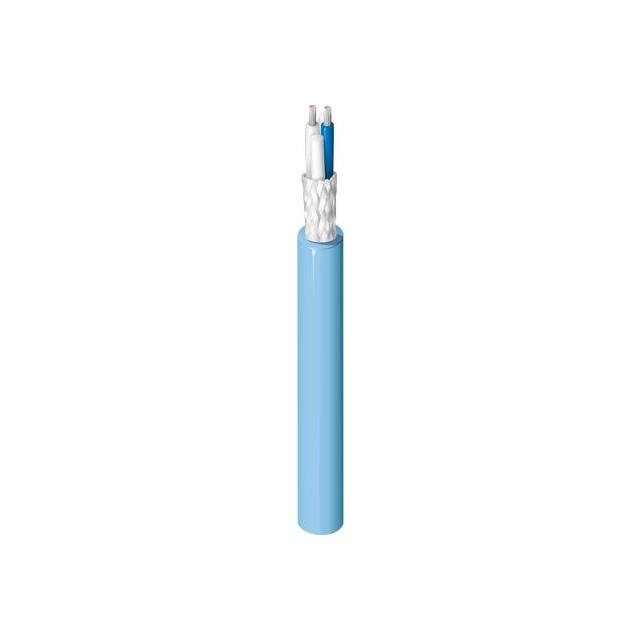

Twinaxial - Plenum Cable 24 AWG 500.0' (152.40m) 77 Ohms
