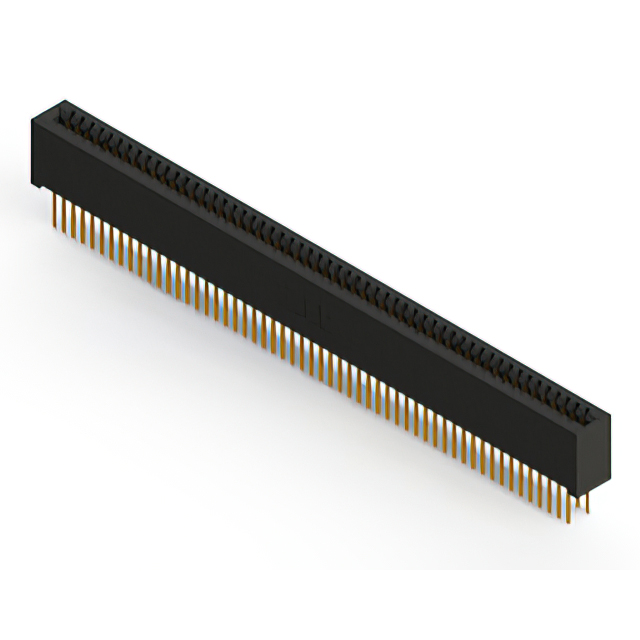

392-110-523-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 110POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
392-110-523-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 110POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 392-110-523-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 110 positions |
| Number of Positions/Bay/Row [custom] | 55 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
392-110 Series
| Part | Number of Positions/Bay/Row [custom] | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Termination Rows | Number of Rows | Contact Finish | Material - Insulation | Contact Type | Gender | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Material | Number of Positions | Color | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 55 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 2 | 2 | Gold | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 110 positions | Black | -40 °C | 105 ░C | Through Hole | Dual | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | |
EDAC Inc. | 55 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 2 | 2 | Gold | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 110 positions | Black | -40 °C | 105 ░C | Board Edge Straddle Mount | Dual | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Card Extender |
EDAC Inc. | 55 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 2 | 2 | Gold | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 110 positions | Black | -40 °C | 105 ░C | Through Hole | Dual | ||||
EDAC Inc. | 55 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 2 | 2 | Gold | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 110 positions | Black | -40 °C | 105 ░C | Through Hole | Dual | ||||
EDAC Inc. | 55 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 2 | 2 | Gold | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 110 positions | Black | -40 °C | 105 ░C | Through Hole | Dual | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | 55 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 2 | 2 | Gold | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 110 positions | Black | -40 °C | 105 ░C | Through Hole | Dual | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | |
EDAC Inc. | 55 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 2 | 2 | Gold | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 110 positions | Black | -40 °C | 105 ░C | Through Hole | Dual | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | |
EDAC Inc. | 55 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 2 | 2 | Gold | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 110 positions | Black | -40 °C | 105 ░C | Board Edge Straddle Mount | Dual | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Card Extender |
EDAC Inc. | 55 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 2 | 2 | Gold | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 110 positions | Black | -40 °C | 105 ░C | Board Edge Straddle Mount | Dual | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||
EDAC Inc. | 55 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.54 mm | 0.1 in | 2 | 2 | Gold | Polyester Thermoplastic | Cantilever | Female | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Copper Alloy | 110 positions | Black | -40 °C | 105 ░C | Through Hole | Dual | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.37 | |
Description
General part information
392-110 Series
110 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
