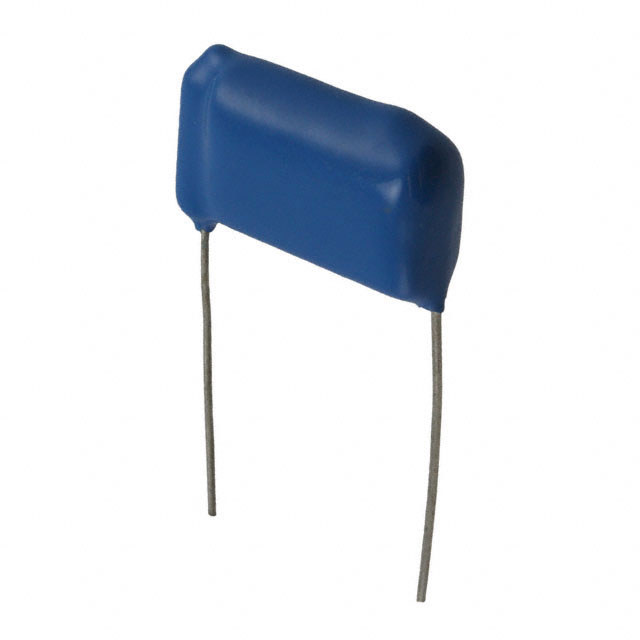

504M06QE100
ActiveCornell Dubilier Knowles
FILTER RC 100 OHM/0.5UF TH
504M06QE100
ActiveCornell Dubilier Knowles
FILTER RC 100 OHM/0.5UF TH
Description
General part information
504M06QE100
RC EMI Filter 1st Order Low Pass 1 Channel R = 100Ohms, C = 0.5µF Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 504M06QE100 |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.5 µF |
| ESD Protection | No |
| Filter Order | 1 |
| Height | 0.921 in |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Resistance | 100 Ohms |
| Resistance - Channel (Ohms) | 100 Ohm |
| Size / Dimension Length | 1.449 in |
| Size / Dimension Width | 0.591 in |
| Technology | RC |
| Type | Low Pass |
| Voltage - Rated | 600 V |
