Description
General part information

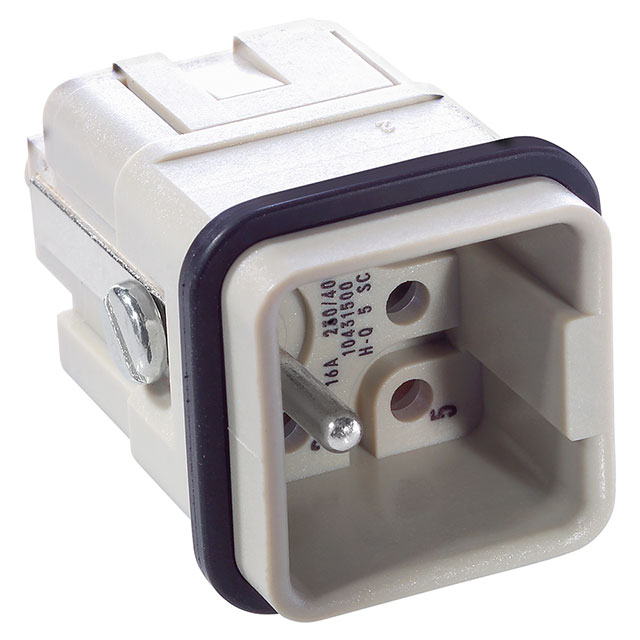

10431500
Male Insert 5+Ground Position Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | 10431500 |
|---|---|
| Connector Type | Insert |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating | 16 A |
| Gender | Male |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | 5 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Position Types | Ground |
| Size | HA 3/4 |
| Termination Style | Screw |
| Voltage Rating | 600 V |
