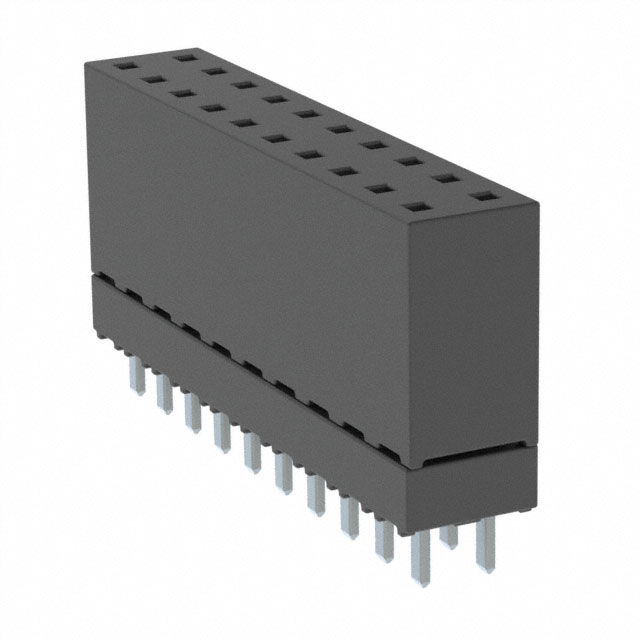

ESW-110-12-T-D

Active

Samtec Inc.

CONN SOCKET 20POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ESW Datasheet +1

ESW-110-12-T-D

Active

Samtec Inc.

CONN SOCKET 20POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet ESW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESW-110-12-T-D

Connector Type	Elevated Socket
Contact Finish - Post	Tin
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.435 in
Insulation Height	11.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	550 VAC

ESW-110 Series

Part	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Contact Type	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Rows	Insulation Color	Number of Positions Loaded	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Termination	Contact Finish - Mating	Insulation Height	Insulation Height	Fastening Type	Voltage Rating	Mounting Type	Connector Type	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post
Samtec Inc. ESW-110-59-S-D	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Tin	Square	2.54 mm	0.1 in	UL94 V-0	Forked	0.1 in	2.54 mm	5.2 A	2	Black	All	20	30 Áin	0.76 Ám	Phosphor Bronze	Solder	Gold	16.13 mm	0.635 in	Push-Pull	550 VAC	Through Hole	Elevated Socket
Samtec Inc. ESW-110-33-G-S-LL	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	Square			UL94 V-0	Forked	0.1 in	2.54 mm	5.2 A	1	Black	All	10	20 µin	0.51 µm	Phosphor Bronze	Kinked Pin Solder	Gold	16.13 mm	0.635 in	Push-Pull	550 VAC	Through Hole	Elevated Socket	0.09 "	2.29 mm	3 µin	0.076 µm
Samtec Inc. ESW-110-33-S-D-LL	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Tin	Square	2.54 mm	0.1 in	UL94 V-0	Forked	0.1 in	2.54 mm	5.2 A	2	Black	All	20	30 Áin	0.76 Ám	Phosphor Bronze	Kinked Pin Solder	Gold	16.13 mm	0.635 in	Push-Pull	550 VAC	Through Hole	Elevated Socket	0.09 "	2.29 mm
Samtec Inc. ESW-110-33-F-D	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Tin	Square	2.54 mm	0.1 in	UL94 V-0	Forked	0.1 in	2.54 mm	5.2 A	2	Black	All	20	3 µin	0.076 µm	Phosphor Bronze	Solder	Gold	16.13 mm	0.635 in	Push-Pull	550 VAC	Through Hole	Elevated Socket	0.09 "	2.29 mm
Samtec Inc. ESW-110-13-G-S	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	Square			UL94 V-0	Forked	0.1 in	2.54 mm	5.2 A	1	Black	All	10	20 µin	0.51 µm	Phosphor Bronze	Solder	Gold	11.05 mm	0.435 in	Push-Pull	550 VAC	Through Hole	Elevated Socket			3 µin	0.076 µm	0.29 "	7.37 mm
Samtec Inc. ESW-110-49-G-S-LL	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	Square			UL94 V-0	Forked	0.1 in	2.54 mm	5.2 A	1	Black	All	10	20 µin	0.51 µm	Phosphor Bronze	Kinked Pin Solder	Gold	13.6 mm	0.535 in	Push-Pull	550 VAC	Through Hole	Elevated Socket	0.38 in	9.65 mm	3 µin	0.076 µm
Samtec Inc. ESW-110-24-L-S	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Tin	Square			UL94 V-0	Forked	0.1 in	2.54 mm	5.2 A	1	Black	All	10	10 çin	0.25 çm	Phosphor Bronze	Solder	Gold	13.6 mm	0.535 in	Push-Pull	550 VAC	Through Hole	Elevated Socket	0.38 in	9.65 mm
Samtec Inc. ESW-110-38-S-D	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Tin	Square	2.54 mm	0.1 in	UL94 V-0	Forked	0.1 in	2.54 mm	5.2 A	2	Black	All	20	30 Áin	0.76 Ám	Phosphor Bronze	Solder	Gold	11.05 mm	0.435 in	Push-Pull	550 VAC	Through Hole	Elevated Socket					0.29 "	7.37 mm
Samtec Inc. ESW-110-39-G-D	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Gold	Square	2.54 mm	0.1 in	UL94 V-0	Forked	0.1 in	2.54 mm	5.2 A	2	Black	All	20	20 µin	0.51 µm	Phosphor Bronze	Solder	Gold	11.05 mm	0.435 in	Push-Pull	550 VAC	Through Hole	Elevated Socket		0.48 in	3 µin	0.076 µm			12.19 mm
Samtec Inc. ESW-110-12-T-D	Liquid Crystal Polymer (LCP)	-55 °C	105 ░C	Tin	Square	2.54 mm	0.1 in	UL94 V-0	Forked	0.1 in	2.54 mm	5.2 A	2	Black	All	20			Phosphor Bronze	Solder		11.05 mm	0.435 in	Push-Pull	550 VAC	Through Hole	Elevated Socket	0.09 "	2.29 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.85
		10	$ 2.17
		100	$ 1.68
		500	$ 1.63
