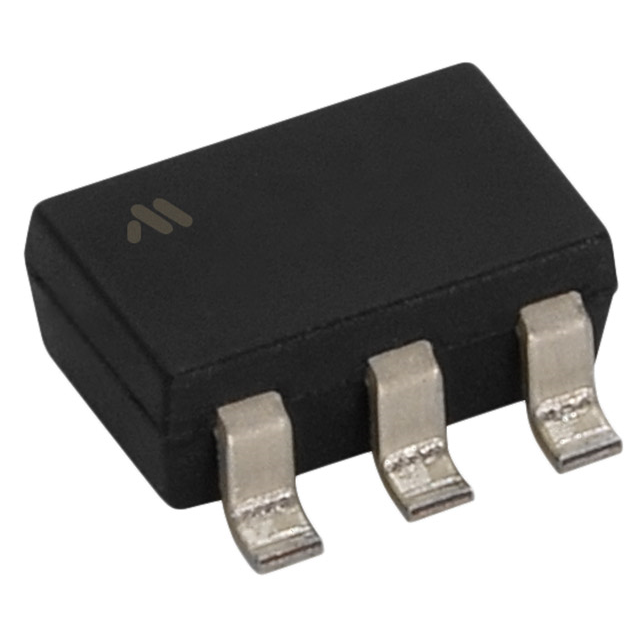

MM3508C02NRH

Active

Mitsumi Electric Company Ltd

IC, MULTI CELL, SECOND PROTECTIO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MM3508C02NRH

Active

Mitsumi Electric Company Ltd

IC, MULTI CELL, SECOND PROTECTIO

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	3000	$ 0.94

Description

General part information

MM3508 Series

Battery Battery Protection IC Lithium Ion/Polymer SOT-26A

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MM3508C02NRH	MM3508 Series

Battery Chemistry	Lithium Ion/Polymer	Lithium Ion/Polymer
Fault Protection	-	Over Current, Over Voltage, Short Circuit
Function	Battery Protection	Battery Protection
Mounting Type	Surface Mount	Surface Mount
Number of Cells [Max]	3 cells	3 - 4
Number of Cells [Min]	1	1 - 2 cells
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	SOT-23-6	6-WFDFN Exposed Pad, SOT-23-6
Supplier Device Package	SOT-26A	SSON-6A, SOT-26A

MM3508 Series

IC, MULTI CELL, SECOND PROTECTIO

Part	Function	Supplier Device Package	Package / Case	Number of Cells [Min]	Number of Cells [Max]	Fault Protection	Operating Temperature [Min]	Operating Temperature [Max]	Battery Chemistry	Mounting Type
Mitsumi Electric Company Ltd MM3508A03RRE	Battery Protection	SSON-6A	6-WFDFN Exposed Pad	2 cells	4	Over Current, Over Voltage	-40 °C	110 °C	Lithium Ion/Polymer	Surface Mount
Mitsumi Electric Company Ltd MM3508C01RRE	Battery Protection	SSON-6A	6-WFDFN Exposed Pad	1	3 cells		-40 °C	110 °C	Lithium Ion/Polymer	Surface Mount
Mitsumi Electric Company Ltd MM3508B10RRE	Battery Protection	SSON-6A	6-WFDFN Exposed Pad	2 cells	4	Over Voltage, Short Circuit	-40 °C	110 °C	Lithium Ion/Polymer	Surface Mount
Mitsumi Electric Company Ltd MM3508A06RRE	Battery Protection	SSON-6A	6-WFDFN Exposed Pad	2 cells	4	Over Current, Over Voltage	-40 °C	110 °C	Lithium Ion/Polymer	Surface Mount
Mitsumi Electric Company Ltd MM3508C02NRH	Battery Protection	SOT-26A	SOT-23-6	1	3 cells		-40 °C	110 °C	Lithium Ion/Polymer	Surface Mount
Mitsumi Electric Company Ltd MM3508A07RRE	Battery Protection	SSON-6A	6-WFDFN Exposed Pad	2 cells	4	Over Current, Over Voltage	-40 °C	110 °C	Lithium Ion/Polymer	Surface Mount
Mitsumi Electric Company Ltd MM3508A01RRE	Battery Protection	SSON-6A	6-WFDFN Exposed Pad	2 cells	4	Over Current, Over Voltage	-40 °C	110 °C	Lithium Ion/Polymer	Surface Mount
Mitsumi Electric Company Ltd MM3508B06RRE	Battery Protection	SSON-6A	6-WFDFN Exposed Pad	2 cells	4	Over Voltage, Short Circuit	-40 °C	110 °C	Lithium Ion/Polymer	Surface Mount
Mitsumi Electric Company Ltd MM3508C01NRH	Battery Protection	SOT-26A	SOT-23-6	1	3 cells		-40 °C	110 °C	Lithium Ion/Polymer	Surface Mount
Mitsumi Electric Company Ltd MM3508C02RRE	Battery Protection	SSON-6A	6-WFDFN Exposed Pad	1	3 cells		-40 °C	110 °C	Lithium Ion/Polymer	Surface Mount
