01C3001FF
ObsoleteVishay Dale
THERMISTOR, NTC, 3 KOHM, C SERIES, THROUGH HOLE, WIRE LEADED
01C3001FF
ObsoleteVishay Dale
THERMISTOR, NTC, 3 KOHM, C SERIES, THROUGH HOLE, WIRE LEADED
Description
General part information
01C3001FF

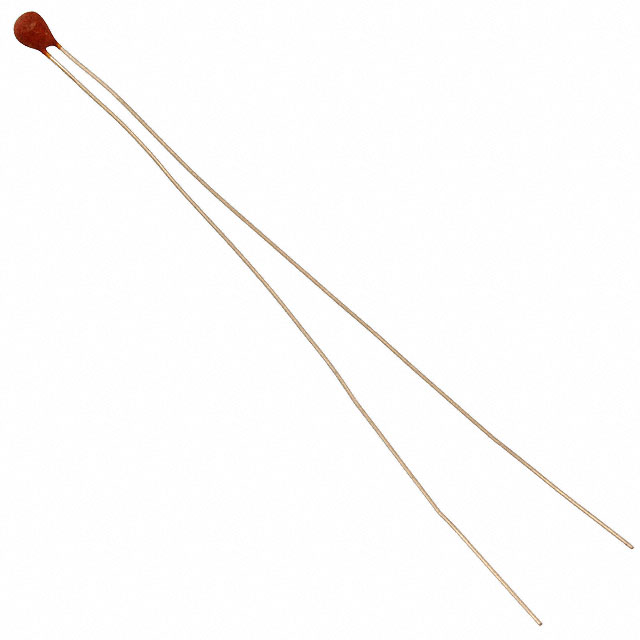

The C series Radial Leaded and Coated NTC Thermistor for onboard sensing or for accurate remote sensing in metal probes or housings. The coating is baked-on phenolic for durability and long-term stability. It has tinned solid copper leads.
Technical Specifications
Parameters and characteristics for this part
| Specification | 01C3001FF |
|---|---|
| B Value (25/85) | 3974 K |
| B Value Tolerance | 1 % |
| B25/75 | 3964 K |
| Length - Lead Wire | 3 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead |
| Power - Max | 100 mW |
| Resistance (Ohms) | 3 kOhm |
| Resistance Tolerance (%) | 1 % |
