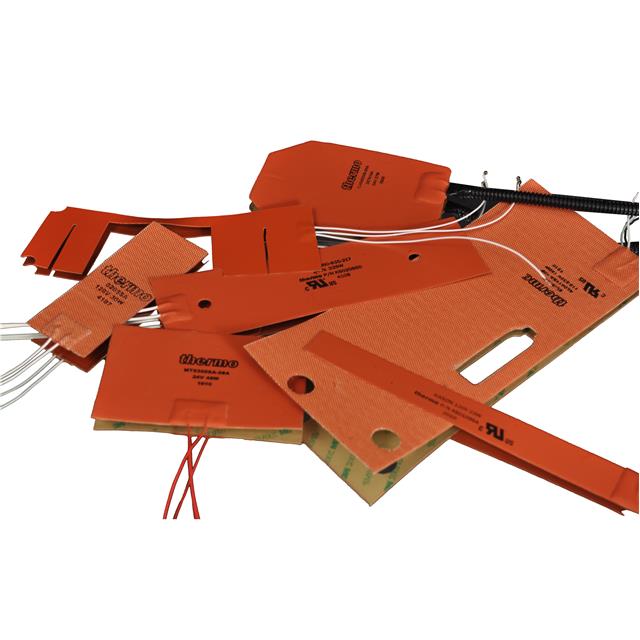

DK0306SA

Active

Thermo Heating Elements

3.0 X 6.0 IN. SILICONE RUBBER HE

Search across all available documentation for this part.

Active

Thermo Heating Elements

3.0 X 6.0 IN. SILICONE RUBBER HE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DK0306SA	DK0306 Series

Attachment Method	Pressure Sensitive Adhesive (PSA)	Pressure Sensitive Adhesive (PSA)
Color	Black	Black
Length	3 in	3 in
Length	76.2 mm	76.2 mm
Length - Lead Wire [x]	12 in	12 in
Length - Lead Wire [x]	304.8 mm	304.8 mm
Material	Silicone Rubber	Polyester, Silicone Rubber
Material - Insulation	Polytetrafluoroethylene (PTFE)	Polyvinyl Chloride (PVC), Polytetrafluoroethylene (PTFE)
Power (Watts)	40 W	9 - 40 W
Resistance	14.4 Ohms	14.4 - 16 Ohms
Shape	Rectangular	Rectangular
Temperature Rating	428 °F	239 - 428 °F
Temperature Rating	220 °C	115 - 220 °C
Termination	Wire Leads	Wire Leads
Type	-	Flexible Heater, Printed
Watt Density @ 12V	2.222 W/in²	2.222 - 500 mW/in²
Width [y]	152.4 mm	152.4 mm
Width [y]	6 in	6 in
Wire Gauge	20 AWG	20 AWG

3.0 X 6.0 IN. POLYMER THICK FILM

Part	Wire Gauge	Width [y]	Width [y]	Color	Resistance	Attachment Method	Length	Length	Temperature Rating	Temperature Rating	Material - Insulation	Material	Watt Density @ 12V	Type	Length - Lead Wire [x]	Length - Lead Wire [x]	Shape	Power (Watts)	Termination
Thermo Heating Elements DK0306PA	20 AWG	152.4 mm	6 in	Black	16 Ohms	Pressure Sensitive Adhesive (PSA)	3 in	76.2 mm	239 °F	115 °C	Polyvinyl Chloride (PVC)	Polyester	500 mW/in²	Flexible Heater, Printed	12 in	304.8 mm	Rectangular	9 W	Wire Leads
Thermo Heating Elements DK0306SA	20 AWG	152.4 mm	6 in	Black	14.4 Ohms	Pressure Sensitive Adhesive (PSA)	3 in	76.2 mm	428 °F	220 °C	Polytetrafluoroethylene (PTFE)	Silicone Rubber	2.222 W/in²		12 in	304.8 mm	Rectangular	40 W	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 69.95

General part information

3.0 X 6.0 IN. SILICONE RUBBER HE

Technical documentation and resources

No documents available
