712ACF

Active

Switchcraft Inc.

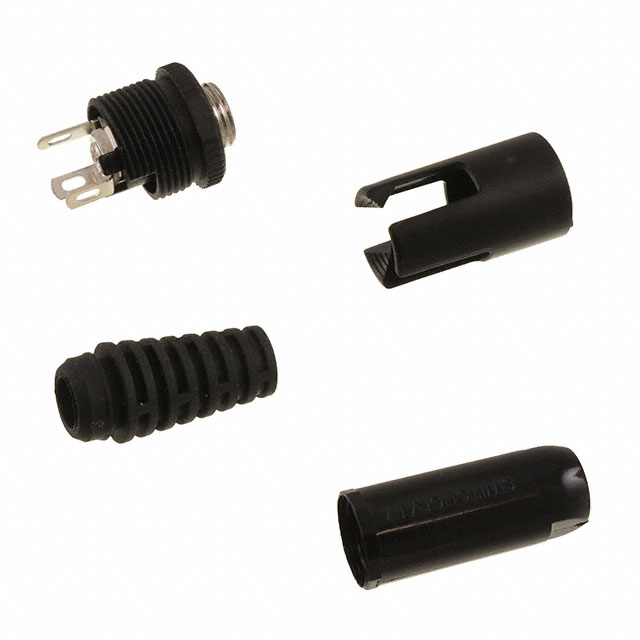

DC POWER JACK, IN-LINE, 2.5MM, S

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

712ACF

Active

Switchcraft Inc.

DC POWER JACK, IN-LINE, 2.5MM, S

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.58
		10	$ 5.92
		25	$ 5.58
		50	$ 5.43
		100	$ 5.29
		300	$ 4.72
		500	$ 4.43
		1000	$ 4.41

Description

General part information

712A Series

Power Barrel Connector Jack 2.50mm ID (0.098") Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	712ACF	712A Series

Actual Diameter	-	2.5 mm
Actual Diameter	-	0.098 "
Actual Diameter	-	0.217 "
Actual Diameter	-	5.5 mm
Actual Diameter [diameter]	2.5 mm	2.5 mm
Actual Diameter [diameter]	0.098 in	0.098 in
Body Color	Silver, Black	Silver, Black
Body Material	Copper Alloy	Brass, Copper Alloy
Connector Type	Jack	Jack
Contact Material	Copper Alloy	Brass, Copper Alloy
Contact Material - Plating	Tin	Tin
Contact Material - Plating	-	Nickel
Current Rating (Amps)	5 A	5 A
Features	Strain Relief	Strain Relief
Gender	Male	Male
Housing Material	Thermoplastic	Acrylonitrile Butadiene Styrene (ABS), Thermoplastic
Includes	-	Mounting Hardware, Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	2.5 mm ID	2.5 - 5.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 "	0.098 - 0.217 "
Insulation Color	Black	Silver, Black
Internal Switch(s)	-	False
Internal Switch(s)	-	Single Switch
Mating Length/Depth	-	0.374 in
Mating Length/Depth	-	9.5 mm
Mounting Feature	-	Bulkhead - Rear Side Nut
Mounting Type	Free Hanging (In-Line)	Through Hole, Free Hanging (In-Line)
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Number of Positions/Contacts	-	2
Number of Positions/Contacts	-	2
Operating Temperature [Max]	105 ░C	65 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shielding	Unshielded	Shielded, Unshielded
Termination	Solder Eyelet(s)	Solder Cup, Solder Eyelet, Through Hole, Solder Eyelet(s)
Thread Size	-	M11x1, 5/16"-32
Voltage - Rated	24 VDC	24 - 48 V

712A Series

DC POWER JACK, SHIELDED, FRONT P

Part	Insulation Color	Mounting Feature	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Mating Length/Depth	Mating Length/Depth	Shielding	Body Material	Housing Material	Termination	Voltage - Rated	Thread Size	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material - Plating [custom]	Gender	Current Rating (Amps)	Includes	Body Color	Connector Type	Contact Material	Mounting Type	Internal Switch(s)	Number of Positions/Contacts	Contact Material - Plating	Actual Diameter [diameter]	Actual Diameter [diameter]	Features
Switchcraft Inc. 712AFMS	Silver	Bulkhead - Rear Side Nut	2	2	2.5 mm	0.098 "	0.217 "	5.5 mm	0.374 in	9.5 mm	Shielded	Brass	Acrylonitrile Butadiene Styrene (ABS)	Solder Cup, Solder Eyelet	48 V	M11x1	2.5 mm, 5.5 mm	0.098 ", 0.217 "	65 °C	-40 °C	Nickel	Male	5 A	Mounting Hardware	Silver	Jack	Brass
Switchcraft Inc. 712AH											Unshielded	Copper Alloy	Thermoplastic	Through Hole	48 V	5/16"-32	2.5 mm ID	0.098 "			Nickel	Male		Connector, Nut, Washer	Black, Silver	Jack	Copper Alloy	Through Hole	Single Switch	2 Conductors, 3 Conductors
Switchcraft Inc. 712ACF	Black										Unshielded	Copper Alloy	Thermoplastic	Solder Eyelet(s)	24 VDC		2.5 mm ID	0.098 "	105 ░C	-40 °C		Male	5 A		Black, Silver	Jack	Copper Alloy	Free Hanging (In-Line)		2 Conductors, 3 Conductors	Tin	2.5 mm	0.098 in	Strain Relief
Switchcraft Inc. 712AC	Black										Unshielded	Copper Alloy	Thermoplastic	Solder Eyelet(s)	24 VDC		2.5 mm ID	0.098 "	105 ░C	-40 °C		Male	5 A		Black, Silver	Jack	Copper Alloy	Free Hanging (In-Line)		2 Conductors, 3 Conductors	Tin	2.5 mm	0.098 in
