MVI18-250DFK

Active

CONN QC RCPT 18-22AWG 0.250

Search across all available documentation for this part.

Active

CONN QC RCPT 18-22AWG 0.250

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.42

General part information

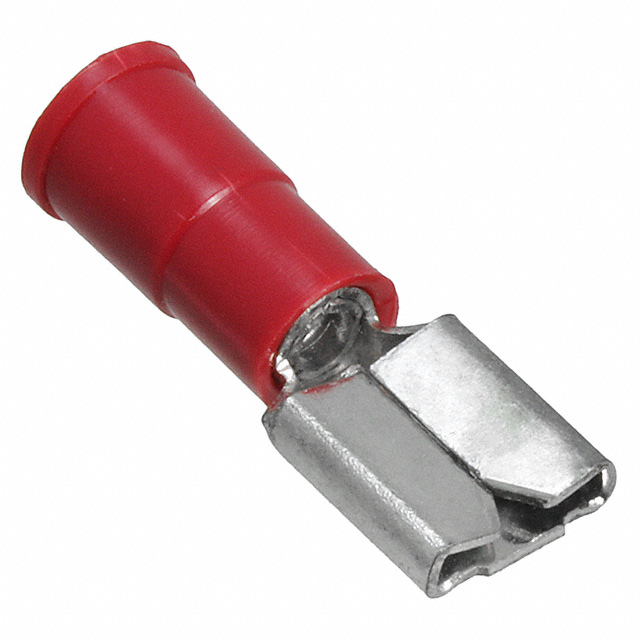

0.250" (6.35mm) Quick Connect Female 18-22 AWG Crimp Connector Non-Mating End Insulated

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	MVI18-250DFK	MVI18 Series

Color	Red	Red
Contact Finish	Tin	Tin
Contact Material	Brass	Brass
Gender	Female	Female
Insulation	Non-Mating End Insulated	Non-Mating End Insulated
Insulation Diameter	3.68 mm	3.68 mm
Insulation Diameter [diameter]	0.145 "	0.145 "
Length - Overall	21.08 mm	21.08 mm
Length - Overall [x]	0.83 in	0.83 in
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	6.35 mm	6.35 mm
Tab Width	0.25 in	0.25 in
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	17.5 AWG	17.5 AWG

CONN QC RCPT 18-22AWG 0.250

Part	Gender	Contact Finish	Contact Material	Color	Mounting Type	Tab Thickness	Tab Thickness	Termination	Insulation Diameter	Insulation Diameter [diameter]	Insulation	Length - Overall	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Tab Width	Tab Width	Terminal Type
3M MVI18-250DFK	Female	Tin	Brass	Red	Free Hanging (In-Line)	0.032 in	0.81 mm	Crimp	3.68 mm	0.145 "	Non-Mating End Insulated	21.08 mm	0.83 in	22 AWG	17.5 AWG	6.35 mm	0.25 in	Standard
3M MVI18-250DFX-BOTTLE	Female	Tin	Brass	Red	Free Hanging (In-Line)	0.032 in	0.81 mm	Crimp	3.68 mm	0.145 "	Non-Mating End Insulated	21.08 mm	0.83 in	22 AWG	17.5 AWG	6.35 mm	0.25 in	Standard
