637-015-330-266

Active

EDAC Inc.

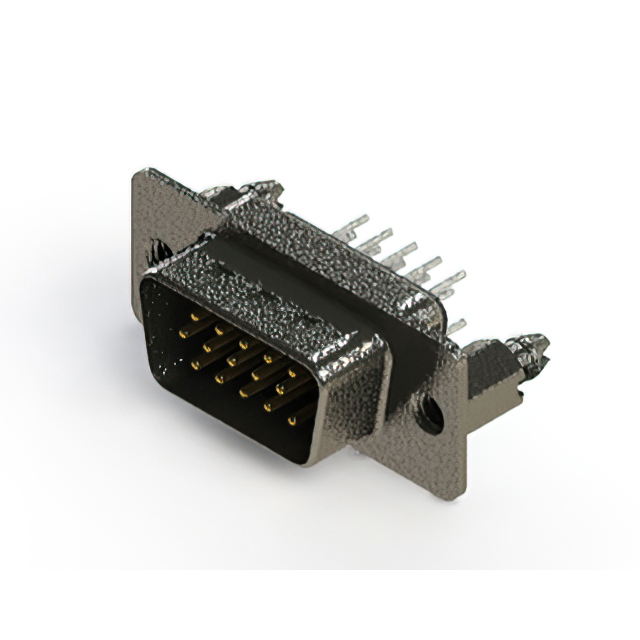

CONN D-SUB HD PLUG 15P PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

637-015-330-266

Active

EDAC Inc.

CONN D-SUB HD PLUG 15P PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	637-015-330-266

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

637-015 Series

...

Part	Flange Feature	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Shell Material, Finish	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Dielectric Material	Mounting Type	Contact Type	Material Flammability Rating	Number of Rows	Color	Connector Type	Features	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Termination
EDAC Inc. 637-015-232-067	4-40	3 A	DE E	1	High Density	Flash	Nickel Plated Steel	D-Sub High Density	-55 °C	125 °C	Brass	Polyester Thermoplastic	Free Hanging (In-Line)	Signal	UL94 V-0	3	Black	Male Pins Plug	Board Lock Grounding Indents Shielded	Gold	15
EDAC Inc. 637-015-630-047	4-40	3 A	DE E	1	High Density		Nickel Plated Steel	D-Sub High Density	-55 °C	85 °C	Brass	Polyester Thermoplastic	Panel Mount Through Hole	Signal	UL94 V-0	3	Black	Male Pins Plug	Board Lock Grounding Indents Shielded	Gold	15	0.76 Ám	30 Áin	Solder
EDAC Inc. 637-015-630-041	Housing/Shell (Unthreaded)	3 A	DE E	1	High Density		Nickel Plated Steel	D-Sub High Density	-55 °C	85 °C	Brass	Polyester Thermoplastic	Panel Mount Through Hole	Signal	UL94 V-0	3	Black	Male Pins Plug	Grounding Indents Shielded	Gold	15	0.76 Ám	30 Áin	Solder
EDAC Inc. 637-015-332-262	Housing/Shell (4-40)	3 A	DE E	1	High Density			D-Sub High Density	-55 °C	125 °C	Brass	Polyester Thermoplastic	Free Hanging (In-Line)	Signal	UL94 V-0	3	Black	Male Pins Plug	Grounding Indents Shielded	Gold	15	0.38 µm	15 µin
EDAC Inc. 637-015-330-269	4-40 Board Side	3 A	DE E	1	High Density			D-Sub High Density	-55 °C	125 °C	Brass	Polyester Thermoplastic	Panel Mount Through Hole	Signal	UL94 V-0	3	Black	Male Pins Plug	Grounding Indents Shielded	Gold	15	0.38 µm	15 µin	Solder
EDAC Inc. 637-015-232-268	4-40	3 A	DE E	1	High Density	Flash		D-Sub High Density	-55 °C	125 °C	Brass	Polyester Thermoplastic	Free Hanging (In-Line)	Signal	UL94 V-0	3	Black	Male Pins Plug	Grounding Indents Shielded	Gold	15
EDAC Inc. 637-015-232-049	4-40 Board Side	3 A	DE E	1	High Density	Flash	Nickel Plated Steel	D-Sub High Density	-55 °C	85 °C	Brass	Polyester Thermoplastic	Free Hanging (In-Line)	Signal	UL94 V-0	3	Black	Male Pins Plug	Grounding Indents Shielded	Gold	15
EDAC Inc. 637-015-230-263	Female Screwlock (4-40) Mating Side	3 A	DE E	1	High Density	Flash		D-Sub High Density	-55 °C	125 °C	Brass	Polyester Thermoplastic	Panel Mount Through Hole	Signal	UL94 V-0	3	Black	Male Pins Plug	Grounding Indents Shielded	Gold	15			Solder
EDAC Inc. 637-015-330-266	Housing/Shell (4-40)	3 A	DE E	1	High Density			D-Sub High Density	-55 °C	125 °C	Brass	Polyester Thermoplastic	Panel Mount Through Hole	Signal	UL94 V-0	3	Black	Male Pins Plug	Board Lock Grounding Indents Shielded	Gold	15	0.38 µm	15 µin	Solder
EDAC Inc. 637-015-232-261	Housing/Shell (Unthreaded)	3 A	DE E	1	High Density	Flash		D-Sub High Density	-55 °C	125 °C	Brass	Polyester Thermoplastic	Free Hanging (In-Line)	Signal	UL94 V-0	3	Black	Male Pins Plug	Grounding Indents Shielded	Gold	15

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 4.39

Description

General part information

637-015 Series

15 Position D-Sub, High Density Plug, Male Pins Connector
