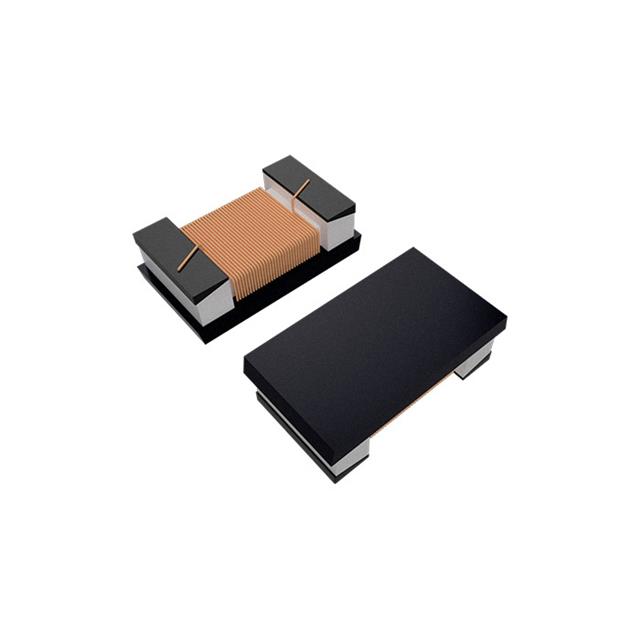

AXLPI-1605-100M-T
ActiveAbracon LLC
FIXED IND 10UH 0.1A 5000M
AXLPI-1605-100M-T
ActiveAbracon LLC
FIXED IND 10UH 0.1A 5000M
Description
General part information
AXLPI-1605-100M-T
10 µH Shielded Wirewound Inductor 100 mA 5Ohm Max 0603 (1608 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | AXLPI-1605-100M-T |
|---|---|
| Current - Saturation (Isat) | 150 mA |
| Current Rating | 100 mA |
| DC Resistance (DCR) (Max) | 5 Ohm |
| Frequency - Self Resonant | 40 MHz |
| Height - Seated (Max) | 0.02 in |
| Inductance | 10 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Shielding | Shielded |
| Size / Dimension Length | 0.063 in |
| Size / Dimension Width | 0.035 in |
| Tolerance | 20 % |
| Type | Wirewound |
