ICM7217AIQI
ActiveAnalog Devices Inc./Maxim Integrated
4 DIGIT UP/DOWN COUNTER
Deep-Dive with AI
Search across all available documentation for this part.
ICM7217AIQI
ActiveAnalog Devices Inc./Maxim Integrated
4 DIGIT UP/DOWN COUNTER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ICM7217AIQI | ICM7217 Series |
|---|---|---|
| Count | 9999 | 5959 - 9999 |
| Current - Supply | 200 mA | 100 - 200 mA |
| Frequency | 2 MHz | 2 MHz |
| Mounting Type | Surface Mount | Surface Mount, Through Hole |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -20 C | -20 C |

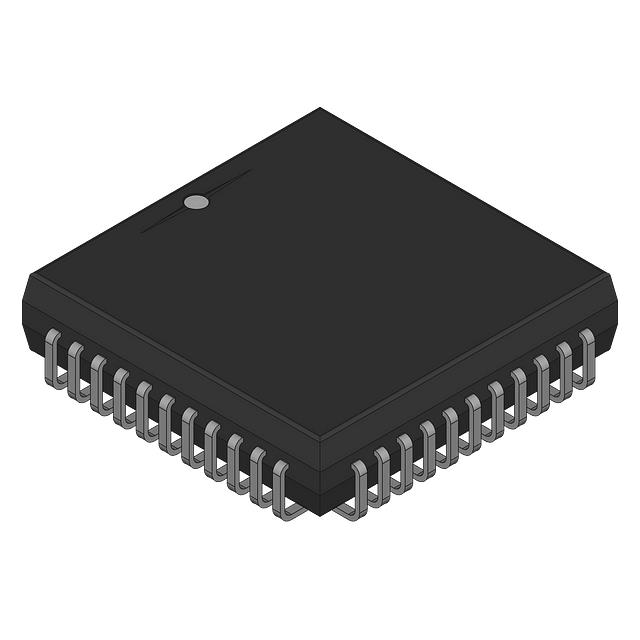

| Package / Case | 28-LCC (J-Lead) | 28-LCC (J-Lead), 28-DIP |
| Package / Case | - | 0.6 in |
| Package / Case | - | 15.24 mm |
| Supplier Device Package | 28-PLCC | 28-PLCC, 28-PDIP |
| Supplier Device Package [x] | 11.5 | 11.5 |
| Supplier Device Package [y] | 11.5 | 11.5 |
| Type | 4-Digit Up/Down Counter | 4-Digit Up/Down Counter |
| Voltage - Supply [Max] | 5.5 V | 5.5 V |
| Voltage - Supply [Min] | 4.5 V | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 258 | $ 1.16 | |
ICM7217 Series
4 DIGIT UP/DOWN COUNTER
| Part | Type | Frequency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply | Package / Case | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Count | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated ICM7217IQI | 4-Digit Up/Down Counter | 2 MHz | 85 °C | -20 C | 100 mA | 28-LCC (J-Lead) | 4.5 V | 5.5 V | Surface Mount | 11.5 | 28-PLCC | 11.5 | 9999 | ||
Analog Devices Inc./Maxim Integrated ICM7217BIPI+ | 4-Digit Up/Down Counter | 2 MHz | 85 °C | -20 C | 200 mA | 28-DIP | 4.5 V | 5.5 V | Through Hole | 28-PDIP | 5959 | 0.6 in | 15.24 mm | ||
Analog Devices Inc./Maxim Integrated ICM7217IPI+ | 4-Digit Up/Down Counter | 2 MHz | 85 °C | -20 C | 200 mA | 28-DIP | 4.5 V | 5.5 V | Through Hole | 28-PDIP | 9999 | 0.6 in | 15.24 mm | ||
Analog Devices Inc./Maxim Integrated ICM7217CIPI+ | 4-Digit Up/Down Counter | 2 MHz | 85 °C | -20 C | 100 mA | 28-DIP | 4.5 V | 5.5 V | Through Hole | 28-PDIP | 5959 | 0.6 in | 15.24 mm | ||
Analog Devices Inc./Maxim Integrated ICM7217AIQI | 4-Digit Up/Down Counter | 2 MHz | 85 °C | -20 C | 200 mA | 28-LCC (J-Lead) | 4.5 V | 5.5 V | Surface Mount | 11.5 | 28-PLCC | 11.5 | 9999 | ||
Analog Devices Inc./Maxim Integrated ICM7217IPI | 4-Digit Up/Down Counter | 2 MHz | 85 °C | -20 C | 200 mA | 28-DIP | 4.5 V | 5.5 V | Through Hole | 28-PDIP | 9999 | 0.6 in | 15.24 mm | ||
Analog Devices Inc./Maxim Integrated ICM7217BIPI | 4-Digit Up/Down Counter | 2 MHz | 85 °C | -20 C | 200 mA | 28-DIP | 4.5 V | 5.5 V | Through Hole | 28-PDIP | 5959 | 0.6 in | 15.24 mm | ||
Analog Devices Inc./Maxim Integrated ICM7217AIPI+ | 4-Digit Up/Down Counter | 2 MHz | 85 °C | -20 C | 100 mA | 28-DIP | 4.5 V | 5.5 V | Through Hole | 28-PDIP | 9999 | 0.6 in | 15.24 mm | ||
Analog Devices Inc./Maxim Integrated ICM7217AIPI | 4-Digit Up/Down Counter | 2 MHz | 85 °C | -20 C | 100 mA | 28-DIP | 4.5 V | 5.5 V | Through Hole | 28-PDIP | 9999 | 0.6 in | 15.24 mm | ||
Analog Devices Inc./Maxim Integrated ICM7217CIPI | 4-Digit Up/Down Counter | 2 MHz | 85 °C | -20 C | 100 mA | 28-DIP | 4.5 V | 5.5 V | Through Hole | 28-PDIP | 5959 | 0.6 in | 15.24 mm |
Description
General part information
ICM7217 Series
4-Digit Up/Down Counter IC 2MHz 28-PLCC (11.5x11.5)
