A1AXG-1436M
ActiveTE Connectivity AMP Connectors
IDC CABLE- ASC14G/ AE14M / X
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A1AXG-1436M
ActiveTE Connectivity AMP Connectors
IDC CABLE- ASC14G/ AE14M / X
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A1AXG-1436M | A1AXG Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Length [x] | 3 ft | 3 ft |
| Length [x] | 914.4 mm | 914.4 mm |
| Number of Positions | 14 | 10 - 64 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
A1AXG Series
IDC CABLE-ASC50G/ AE50G / X
| Part | Length [x] | Length [x] | Connector Type | Number of Positions | Shielding | Number of Rows | Pitch - Cable | Pitch - Cable | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pitch - Connector | Pitch - Connector | Cable Termination | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A1AXG-5036G | 3 ft | 914.4 mm | Socket to Cable | 50 | Unshielded | 2 | 0.05 " | 1.27 mm | Gold | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | IDC | ||
TE Connectivity AMP Connectors A1AXG-6436G | 3 ft | 914.4 mm | Socket to Cable | 64 | Unshielded | 2 | 0.05 " | 1.27 mm | Gold | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | IDC | ||
TE Connectivity AMP Connectors A1AXG-1436M | 3 ft | 914.4 mm | Socket to Cable | 14 | Unshielded | 2 | 0.05 " | 1.27 mm | Gold | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | IDC | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1AXG-2436M | 3 ft | 914.4 mm | Socket to Cable | 24 | Unshielded | 2 | 0.05 " | 1.27 mm | Gold | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | IDC | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1AXG-4036M | 3 ft | 914.4 mm | Socket to Cable | 40 | Unshielded | 2 | 0.05 " | 1.27 mm | Gold | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | IDC | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1AXG-1036M | 3 ft | 914.4 mm | Socket to Cable | 10 | Unshielded | 2 | 0.05 " | 1.27 mm | Gold | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | IDC | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1AXG-3036M | 3 ft | 914.4 mm | Socket to Cable | 30 | Unshielded | 2 | 0.05 " | 1.27 mm | Gold | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | IDC | Multiple, Ribbon | |
TE Connectivity AMP Connectors A1AXG-2036G | 3 ft | 914.4 mm | Socket to Cable | 20 | Unshielded | 2 | 0.05 " | 1.27 mm | Gold | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | IDC | ||
TE Connectivity AMP Connectors A1AXG-3436G | 3 ft | 914.4 mm | Socket to Cable | 34 | Unshielded | 2 | 0.05 " | 1.27 mm | Gold | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | IDC | ||
TE Connectivity AMP Connectors A1AXG-3436M | 3 ft | 914.4 mm | Socket to Cable | 34 | Unshielded | 2 | 0.05 " | 1.27 mm | Gold | 15 µin | 0.38 µm | 0.1 in | 2.54 mm | IDC | Multiple, Ribbon |
Description
General part information
A1AXG Series

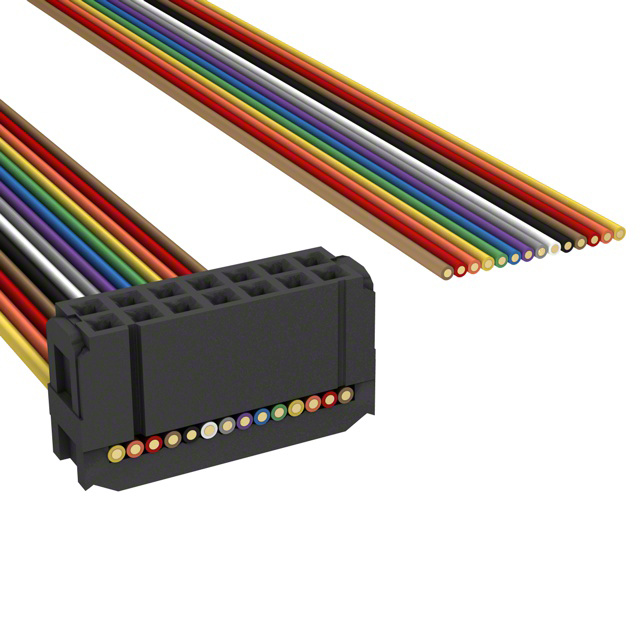

14 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
