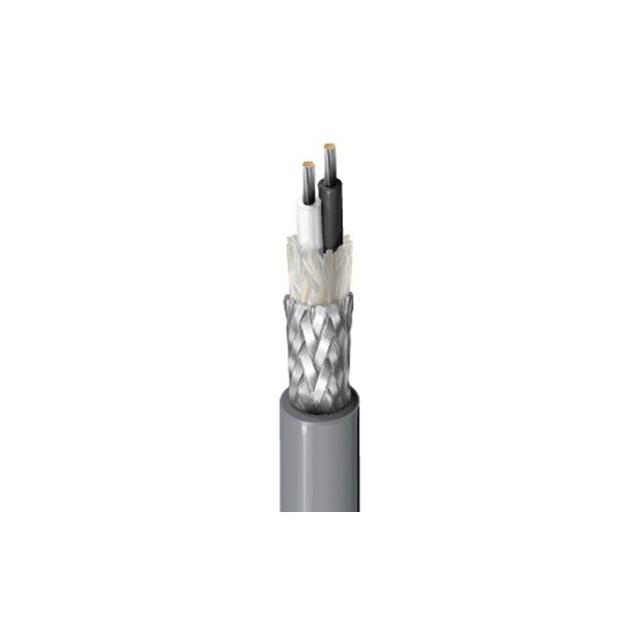

8422 060U1000

Active

Belden Inc.

2 #22 PE CBRD BRD PVC 1=1000'

Search across all available documentation for this part.

Active

Belden Inc.

2 #22 PE CBRD BRD PVC 1=1000'

Technical Specifications

Parameters and characteristics for this part

Specification	8422 060U1000

Cable Type	Microphone
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	34 AWG
Conductor Strand [custom]	16
Jacket (Insulation) Diameter [diameter]	5.87 mm
Jacket (Insulation) Diameter [diameter]	0.231 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.737 mm
Jacket (Insulation) Thickness	0.029 in
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Shield Coverage	85 %
Shield Material	Copper, Tinned, Cotton
Shield Type	Double Braid
Usage	Audio
Voltage	1000 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Jacket Color	Cable Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Voltage	Shield Material	Usage	Shield Coverage	Length [x]	Length [x]	Conductor Material	Length	Length
Belden Inc. 8422 060500	0.737 mm	0.029 in	Poly-Vinyl Chloride (PVC)	Chrome	Microphone	22 AWG	-40 °C	80 C	Double Braid	5.87 mm	0.231 "	2	34 AWG	16	Polyethylene (PE)	1000 V	Copper Tinned Cotton	Audio	85 %	500 '	152.4 m	Copper Tinned
Belden Inc. 8422 060U1000	0.737 mm	0.029 in	Poly-Vinyl Chloride (PVC)	Chrome	Microphone	22 AWG	-40 °C	80 C	Double Braid	5.87 mm	0.231 "	2	34 AWG	16	Polyethylene (PE)	1000 V	Copper Tinned Cotton	Audio	85 %			Copper Tinned	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Conductor Microphone Cable Chrome 22 AWG Double Braid 1000.0' (304.8m)
