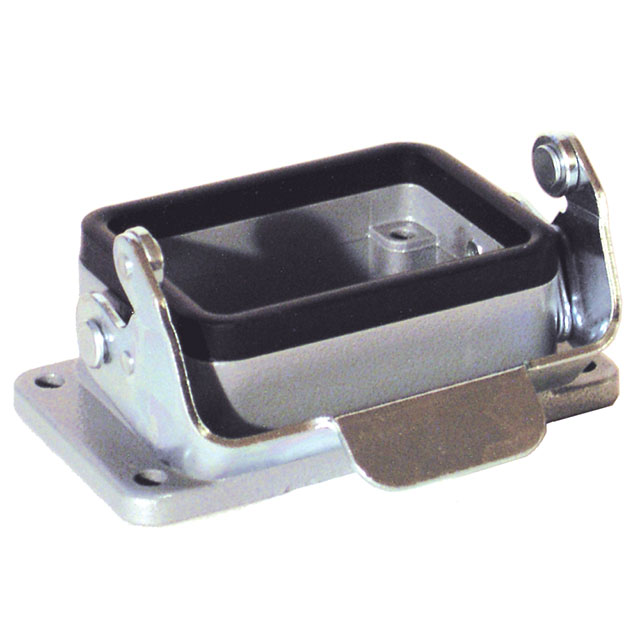

100030C0

Obsolete

LAPP

CONN BASE HB6 PNL MNT

Search across all available documentation for this part.

Obsolete

LAPP

CONN BASE HB6 PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	100030C0

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	HB6
Size / Dimension [x]	80 mm
Size / Dimension [x]	3.15 in
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	1.094 in
Size / Dimension [z]	27.8 mm
Style	Bottom Entry

CONN BASE HB6 PNL MNT

Part	Size	Style	Lock Location	Housing Material	Housing Finish	Ingress Protection	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color
LAPP 100030C0	HB6	Bottom Entry	Locking Clip (1) on Base Bottom	Aluminum Alloy	Powder Coated	IP65 - Dust Tight, Water Resistant	1.094 in	1.693 in	43 mm	80 mm	3.15 in	27.8 mm	Base - Panel Mount	125 °C	-40 °C	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry HB6 IP65 - Dust Tight, Water Resistant
