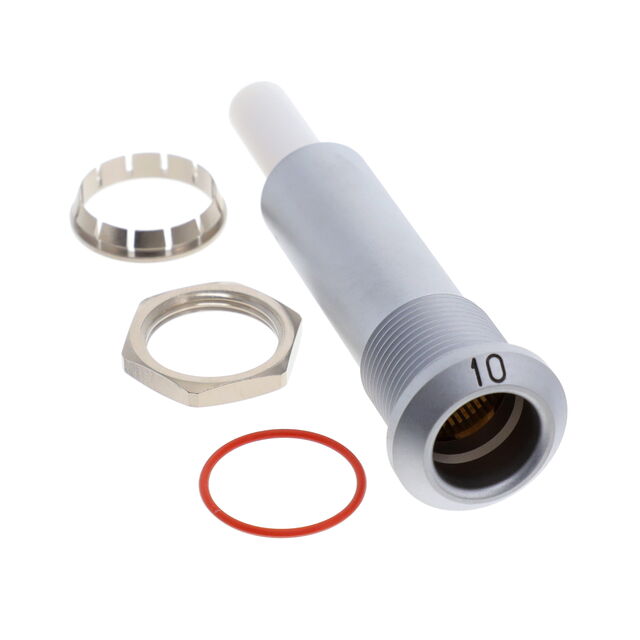

ERA.1Y.410.CTA
ActiveLEMO
CONN RCPT MALE 1P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ERA.1Y.410.CTA
ActiveLEMO
CONN RCPT MALE 1P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ERA.1Y.410.CTA | ERA.1Y Series |
|---|---|---|
| Backshell Material, Plating | Brass, Chrome | Brass, Chrome |
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 - 78.7 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 - 2 Ám |
| Contact Material | Brass | Brass, Beryllium Copper |
| Current Rating (Amps) | 8 A | 6 - 8 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions | 1 | 1 |
| Operating Temperature [Max] | 230 °C | 230 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 410 | 405 - 416 |
ERA.1Y Series
CONN RCPT MALE 1P GOLD SLDR CUP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Shell Size - Insert | Contact Material | Backshell Material, Plating | Features | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Shell Finish | Contact Finish - Mating | Fastening Type | Mounting Feature | Connector Type | Insert Material | Number of Positions | Color | Current Rating (Amps) | Shell Material | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO ERA.1Y.410.CTA | 230 °C | -55 °C | 410 | Brass | Brass, Chrome | Backshell | 59 Áin | 1.5 Ám | IP50 | Chrome | Gold | Push-Pull | Bulkhead - Rear Side Nut | Male Pins, Receptacle | Polytetrafluoroethylene (PTFE) | 1 | Silver | 8 A | Brass | Metal |
LEMO ERA.1Y.416.CLL37 | 230 °C | -55 °C | 416 | Beryllium Copper | 78.7 µin | 2 µm | IP50 | Chrome | Gold | Push-Pull | Bulkhead - Rear Side Nut | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | 1 | Silver | 6 A | Brass | Metal | ||
LEMO ERA.1Y.416.CLL | 230 °C | -55 °C | 416 | Beryllium Copper | 78.7 µin | 2 µm | IP50 | Chrome | Gold | Push-Pull | Bulkhead - Rear Side Nut | Receptacle, Female Sockets | Polyetheretherketone (PEEK) | 1 | Silver | 6 A | Brass | Metal | ||
LEMO ERA.1Y.410.CTL | 230 °C | -55 °C | 410 | Beryllium Copper | Brass, Chrome | Backshell | 78.7 µin | 2 µm | IP50 | Chrome | Gold | Push-Pull | Bulkhead - Rear Side Nut | Receptacle, Female Sockets | Polytetrafluoroethylene (PTFE) | 1 | Silver | 8 A | Brass | Metal |
LEMO ERA.1Y.405.CTL | 230 °C | -55 °C | 405 | Beryllium Copper | Brass, Chrome | Backshell | 78.7 µin | 2 µm | IP50 | Chrome | Gold | Push-Pull | Bulkhead - Rear Side Nut | Receptacle, Female Sockets | Polytetrafluoroethylene (PTFE) | 1 | Silver | 8 A | Brass | Metal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 93.32 | |
| 10 | $ 85.63 | |||
| 25 | $ 82.34 | |||
| 50 | $ 79.60 | |||
| 100 | $ 75.20 | |||
Description
General part information
ERA.1Y Series
1 Position Circular Connector Receptacle, Male Pins Solder Cup
