Description
General part information
FMCA1617-12

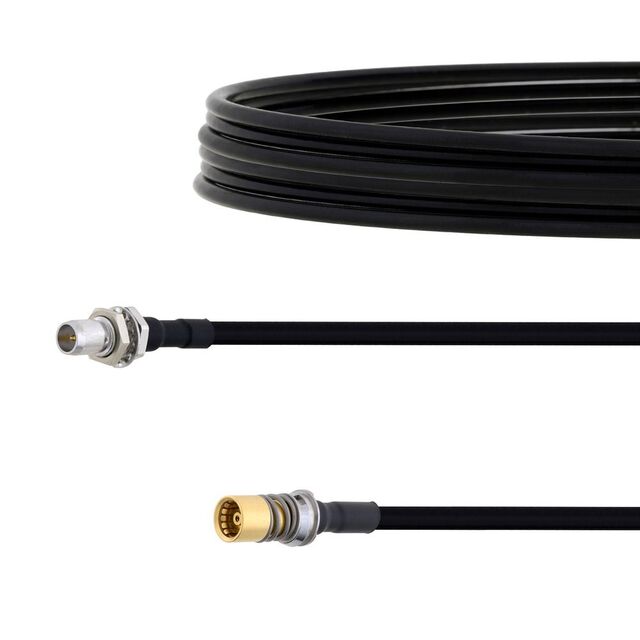

Cable Assembly Coaxial BMA to BMA 0.141" Semi-Rigid Cable 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1617-12 |
|---|---|
| 1st Connector | BMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | BMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | Semi, Rigid Cable, Semi-Rigid Cable |
| Cable Type Size | 0.141 ", 0.141 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 22 GHz |
| Length | 12 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | BMA |
