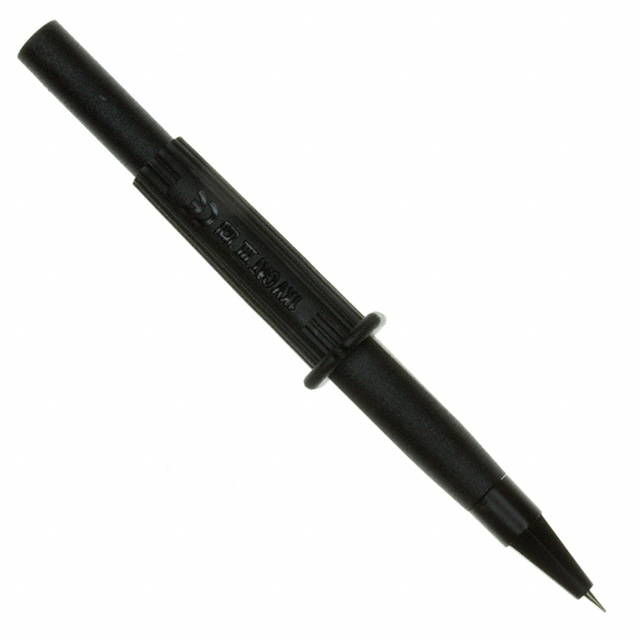

A054B
ActiveTPI (Test Products Int)
OEM PROD BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A054B
ActiveTPI (Test Products Int)
OEM PROD BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A054B | A054 Series |
|---|---|---|
| Color | Black | Black, Red |
| Connection Type | Female Socket (Jack), Banana | Female Socket (Jack), Banana |
| Current Rating (Amps) | 30 mA | 30 mA |
| Length - Overall [x] | 3.66 in | 3.66 in |
| Length - Overall [x] | 93 mm | 93 mm |
| Length - Tip [x] | 0.12 " | 0.12 " |
| Length - Tip [x] | 3 mm | 3 mm |
| Material - Body | Plastic | Plastic |
| Material - Tip | Steel | Steel |
| Quantity | 1 Box | 1 Box |
| Ratings | CAT III | CAT III |
| Ratings | 1000 V | 1000 V |
| Tip Type | Sharp Tip | Sharp Tip |
| Tip Type [diameter] | 0.08 in | 0.08 in |
| Tip Type [diameter] | 2.03 mm | 2.03 mm |
A054 Series
OEM PROD BLACK
| Part | Tip Type [diameter] | Tip Type | Tip Type [diameter] | Length - Tip [x] | Length - Tip [x] | Ratings | Ratings | Current Rating (Amps) | Color | Quantity | Connection Type | Length - Overall [x] | Length - Overall [x] | Material - Body | Material - Tip |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TPI (Test Products Int) A054B | 0.08 in | Sharp Tip | 2.03 mm | 0.12 " | 3 mm | CAT III | 1000 V | 30 mA | Black | 1 Box | Banana, Female Socket (Jack) | 3.66 in | 93 mm | Plastic | Steel |
TPI (Test Products Int) A054R | 0.08 in | Sharp Tip | 2.03 mm | 0.12 " | 3 mm | CAT III | 1000 V | 30 mA | Red | 1 Box | Banana, Female Socket (Jack) | 3.66 in | 93 mm | Plastic | Steel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 50 | $ 4.30 | |
Description
General part information
A054 Series
30 mA Sharp Tip, 0.080" (2.03mm) Dia Black
