B58621K1110A057
ActiveEPCOS - TDK Electronics
SENSOR 14.5PSIG 0.19" 4.5V
B58621K1110A057
ActiveEPCOS - TDK Electronics
SENSOR 14.5PSIG 0.19" 4.5V
Description
General part information
B58621K1110A057

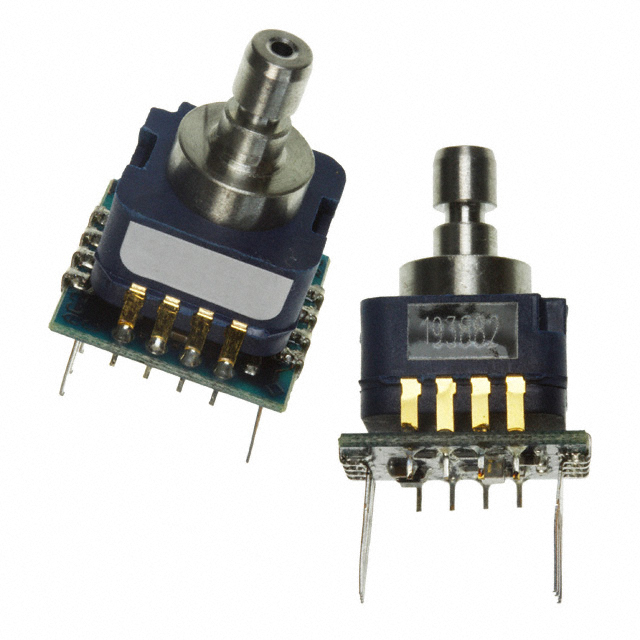

Pressure Sensor 14.5PSI (100kPa) Vented Gauge Male - 0.19" (4.8mm) Tube 0.5 V ~ 4.5 V 8-DIP Module
Technical Specifications
Parameters and characteristics for this part
| Specification | B58621K1110A057 |
|---|---|
| Accuracy | 2 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure | 21.76 PSI |
| Mounting Type | Through Hole |
| Operating Pressure | 14.5 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | Analog Voltage |
| Output Voltage (Max) | 4.5 V |
| Output Voltage (Min) | 0.5 V |
| Package / Case | 8-DIP Module |
| Port Diameter | 0.19 " |
| Port Feature | Tube |
| Port Gender | Male |
| Port Style | Barbless |
| Pressure Type | Vented Gauge |
| Termination Style | PC Pin |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.75 V |
