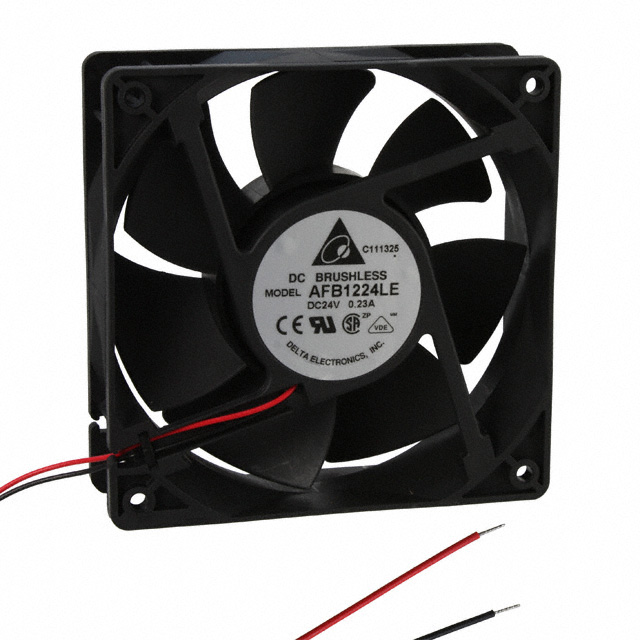

AFB1224LE
ActiveDelta Electronics
FAN AXIAL 120X38MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
AFB1224LE
ActiveDelta Electronics
FAN AXIAL 120X38MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AFB1224LE |
|---|---|
| Air Flow | 84.8 CFM |
| Air Flow | 2.37 m³/min |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 150 mA |
| Fan Type | Tubeaxial |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 34 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 3.6 W |
| RPM | 2000 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 44.8 Pa |
| Static Pressure | 0.18 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 7 V |
| Weight | 256.28 g |
| Weight | 0.565 lb |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.49 | |
| 10 | $ 20.51 | |||
| 36 | $ 18.56 | |||
| 72 | $ 17.09 | |||
| 108 | $ 15.33 | |||
| 252 | $ 14.16 | |||
| 504 | $ 13.19 | |||
Description
General part information
AFB1224LE
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 84.8 CFM (2.37m³/min) 2 Wire Leads
