2-1103108-3
ActiveTE Connectivity AMP Connectors

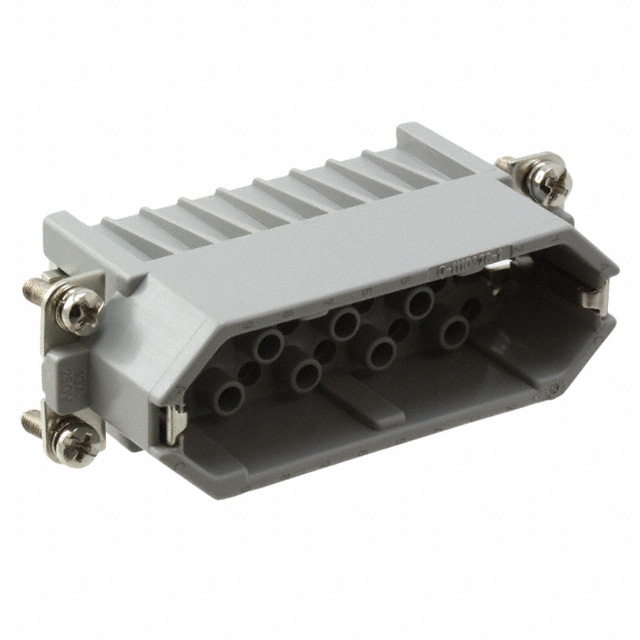

INSERT MALE 25POS+1GND CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1103108-3
ActiveTE Connectivity AMP Connectors
INSERT MALE 25POS+1GND CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1103108-3 |
|---|---|
| Color | Gray |
| Connector Type | Insert without Contacts |
| Contact Type | HTS HN.D |
| Current Rating (Amps) | 10 A |
| Gender | Male |
| Housing Material | Polycarbonate (PC) |
| Material Flammability Rating | UL94 V-0 |
| Number of Positions | Ground |
| Number of Positions | 25 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 5 |
| Termination Style | Crimp |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.25 | |
| 10 | $ 17.71 | |||
1103108 Series
INSERT MALE 25POS+1GND CRIMP
| Part | Material Flammability Rating | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Termination Style | Gender | Size | Housing Material | Color | Contact Type | Current Rating (Amps) | Number of Positions | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-1103108-3 | UL94 V-0 | 125 °C | -40 °C | 250 VDC | Crimp | Male | 5 | Polycarbonate (PC) | Gray | HTS HN.D | 10 A | Ground | 25 | Insert without Contacts |
Description
General part information
1103108 Series
Male Insert without Contacts Gray 25+Ground Position Crimp
