6M.TF.9.024.1200
ActiveFinder Relays, Inc.
POWER ANALYZER AC/DC - 300 A
6M.TF.9.024.1200
ActiveFinder Relays, Inc.
POWER ANALYZER AC/DC - 300 A
Description
General part information
6M.TF.9.024.1200

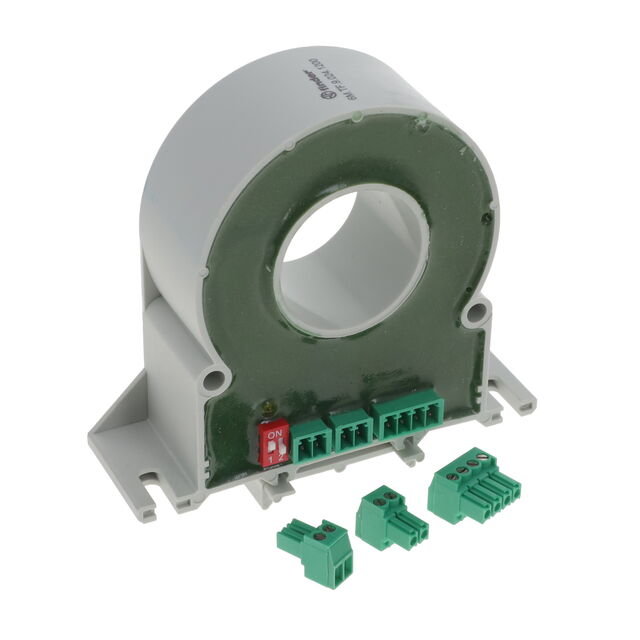

Current Sensor 300A, 400A (Selectable) 1 Channel Current Sensor Bidirectional Module, Single Pass Through
Technical Specifications
Parameters and characteristics for this part
| Specification | 6M.TF.9.024.1200 |
|---|---|
| Accuracy | 0.5 % RH |
| Current - Sensing | 300A, 400A |
| Current - Sensing | 400 A, 300 A |
| For Measuring | AC, DC |
| Frequency | DC |
| Frequency (Max) | 400 Hz |
| Frequency (Min) | 1 Hz |
| Maximum Frequency | 400 Hz |
| Minimum Frequency | DC |
| Mounting Type | DIN Rail |
| Number of Channels | 1 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -15 °C |
| Output | RS485 |
| Package / Case | Module, Single Pass Through |
| Polarization | Bidirectional |
| Sensor Type | Current Sensor |
| Voltage - Supply | 24 VDC |
