1044111
ActiveSICK, Inc.
SMALL PHOTOELECTRIC SENSORS, W12
1044111
ActiveSICK, Inc.
SMALL PHOTOELECTRIC SENSORS, W12
Description
General part information
1044111

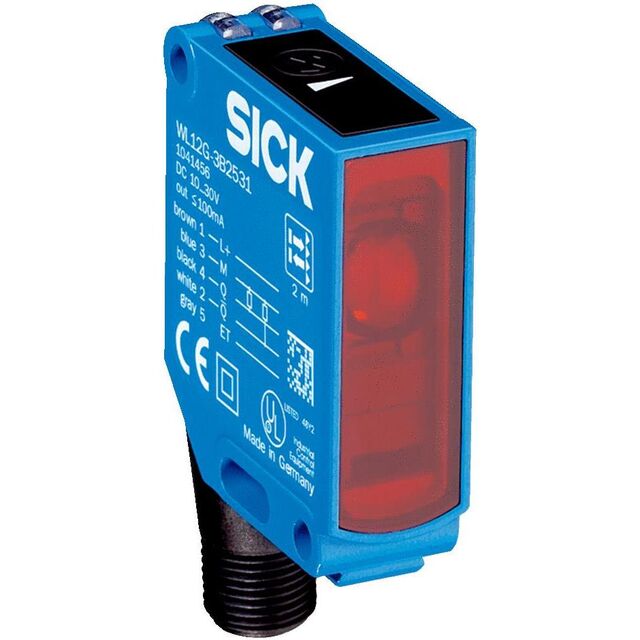

Retroreflective Optical Sensor 0" ~ 78.740" (0m ~ 2m) Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | 1044111 |
|---|---|
| Adjustment Turns | 11 turn |
| Adjustment Type | Potentiometer, Adjustable |
| Connection Method | Connector, M12 |
| Ingress Protection | IP69K, IP66, IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 640 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Light-ON, Dark-ON |
| Response Time | 330 µs |
| Sensing Distance Maximum | 78.74 " |
| Sensing Distance Minimum | 0 cm |
| Sensing Method | Retroreflective |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
