IS31FL3258-QFLS4-TR
ActiveLumissil Microsystems
6-RGB/18-CH LED DRIVER
IS31FL3258-QFLS4-TR
ActiveLumissil Microsystems
6-RGB/18-CH LED DRIVER
Description
General part information
IS31FL3258-QFLS4-TR
LED Driver IC 18 Output Linear Constant Current I2C, PWM Dimming 27.5mA 28-QFN (4x4)
Technical Specifications
Parameters and characteristics for this part
| Specification | IS31FL3258-QFLS4-TR |
|---|---|
| Applications | General Purpose |
| Current - Output / Channel | 27.5 mA |
| Dimming | PWM, I2C |
| Frequency | 32 MHz |
| Internal Switch(s) | No |
| Mounting Type | Surface Mount |
| Number of Outputs | 18 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |

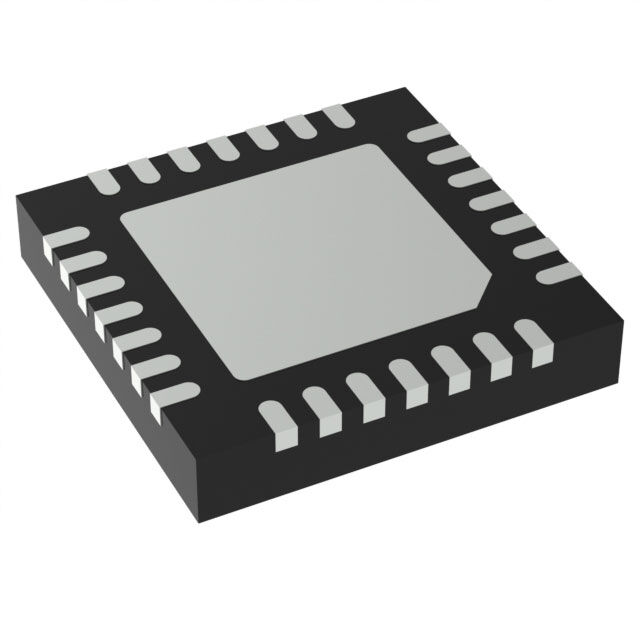

| Package / Case | 28-WFQFN Exposed Pad |
| Package Length | 4 mm |
| Package Name | 28-QFN |
| Package Width | 4 mm |
| Topology | Constant Current |
| Type | Linear |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
