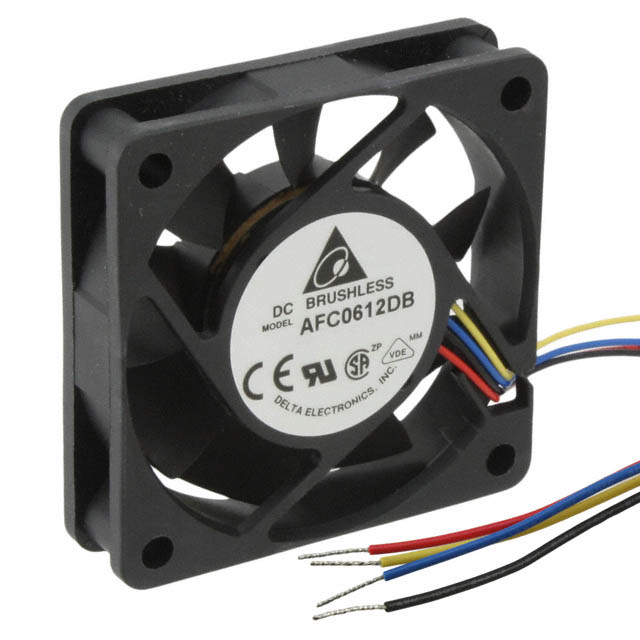

AFC0612DB-F00

Active

Delta Electronics

FAN AXIAL 60X15MM 12VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 60X15MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	AFC0612DB-F00

Air Flow	29.2 CFM
Air Flow	0.818 m³/min
Approval Agency	CE, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.33 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	47.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.96 W
RPM	7200 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	8 VDC
Weight	0.098 lb
Weight	44.45 g
Width [x]	15 mm

Part	Voltage Range [Max]	Voltage Range [Min]	Static Pressure	Static Pressure	Termination	Features	Material - Frame	Approval Agency	Air Flow	Air Flow	Lifetime @ Temp.	Fan Type	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Weight	Weight	Voltage - Rated	Bearing Type	RPM	Noise	Material - Blade	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Width [x]	Current Rating (Amps)
Delta Electronics AFC0612D-SP07	13.8 VDC	10.8 VDC	52.6 Pa	0.211 in H2O	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	CE CSA UL VDE	23.4 CFM	0.655 m³/min	70000 Hrs	Tubeaxial	60 mm	60 mm	1.56 W	80 g	0.176 lb	12 VDC	Ball	4250 RPM	34 dB(A)	Plastic	25.4 mm	70 °C	70 °C	-10 °C	-10 °C
Delta Electronics AFC0612DB-F00	13.2 VDC	8 VDC			4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	Plastic	CE TUV UL	29.2 CFM	0.818 m³/min	70000 Hrs	Tubeaxial	60 mm	60 mm	3.96 W	44.45 g	0.098 lb	12 VDC	Ball	7200 RPM	47.5 dB	Plastic		60 °C	60 °C	-10 °C	-10 °C	15 mm	0.33 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 29.2 CFM (0.818m³/min) 4 Wire Leads
