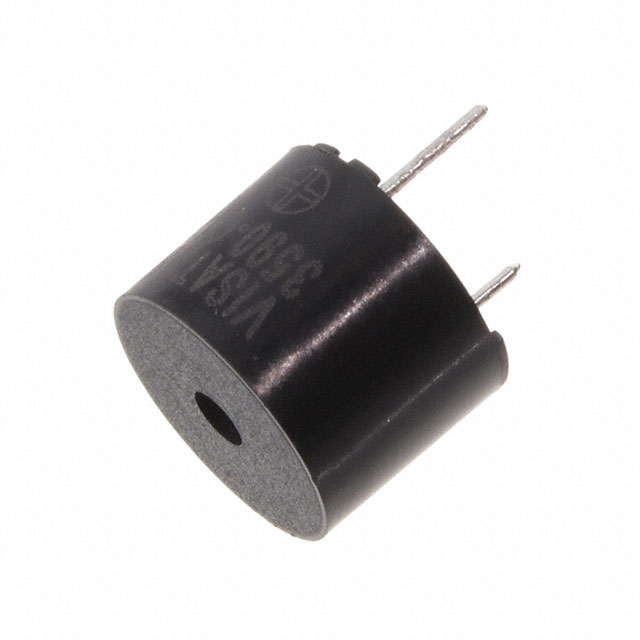

MB 12 - 5 V
ActiveVisaton GmbH & Co. KG
BUZZER ELECTRO 5V 12MM TH
MB 12 - 5 V
ActiveVisaton GmbH & Co. KG
BUZZER ELECTRO 5V 12MM TH
Description
General part information
MB 12 - 5 V
Buzzers Electromechanical 5 V 30mA 2.3kHz 88dB @ 5V, 10cm Through Hole PC Pins
Technical Specifications
Parameters and characteristics for this part
| Specification | MB 12 - 5 V |
|---|---|
| Current - Supply | 30 mA |
| Frequency | 2.3 kHz |
| Height - Seated (Max) | 0.374 in |
| Input Type | DC |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Size / Dimension Diameter | 0.472 in |
| Sound Pressure Level (SPL) | 88 dB |
| Technology | Electromechanical |
| Termination | PC Pins |
| Voltage - Rated | 5 VAC |
| Voltage Range (Max) | 7 V |
| Voltage Range (Min) | 3 V |
