Description
General part information

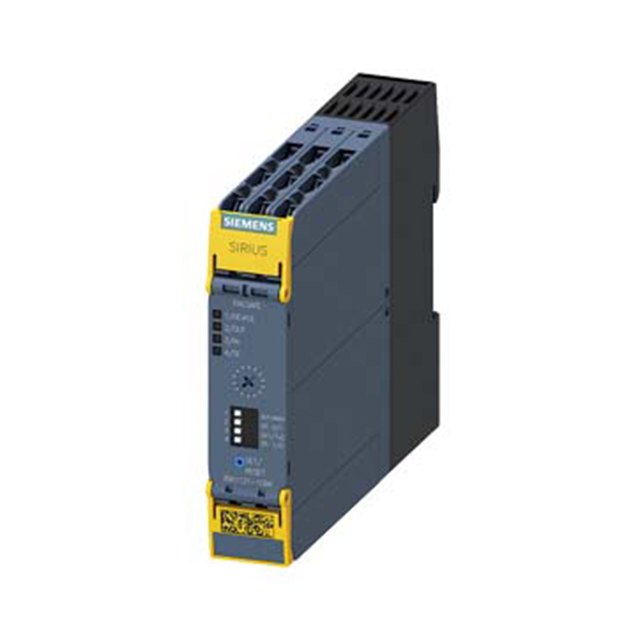

3SK11111AB30
SAFETY RELAY,3NO,1NC,24V AC/DC,S
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SK11111AB30 |
|---|---|
| Coil Voltage | 24 VDC |
| Coil Voltage (Type) | AC, DC |
| Contact Form | 3, B, A, Form, PST-3NO/1NC, 1 |
| Contact Rating (Current) | 5 A |
| Mounting Type | DIN Rail |
| Must Operate Voltage | 20.4 VDC |
| Must Operate Voltage Type | AC, DC |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -25 °C |
| Pin Count | 4 |
| Switching Voltage AC (Max) | 230 VAC |
| Switching Voltage DC (Max) | 24 VDC |
| Termination Style | Screw Terminal |
