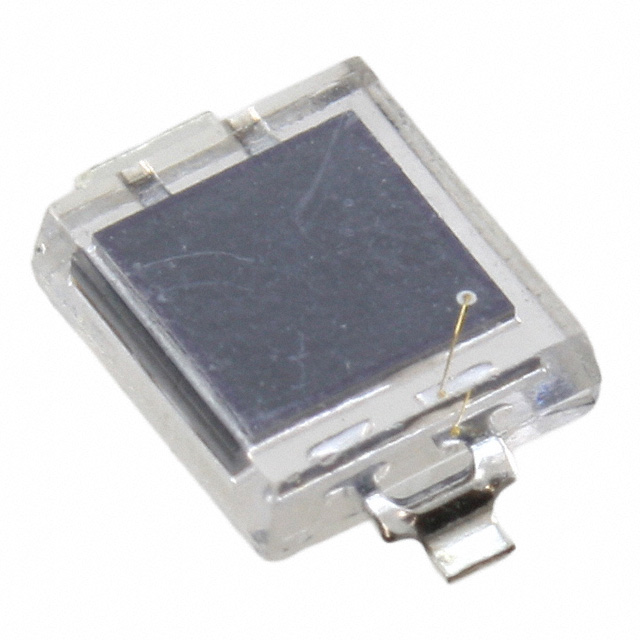

ODD-8SMD

Obsolete

Opto Diode Corp

SENSOR PHOTODIODE 940NM LOCAP

Search across all available documentation for this part.

Obsolete

Opto Diode Corp

SENSOR PHOTODIODE 940NM LOCAP

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR PHOTODIODE 940NM LOCAP

Part	Spectral Range [Max] [x]	Spectral Range [Min] [x]	Operating Temperature [Min]	Operating Temperature [Max]	Responsivity @ nm	Mounting Type	Wavelength	Response Time	Active Area	Voltage - DC Reverse (Vr) (Max) [Max]	Spectral Range [Min] [custom]	Spectral Range [Max] [custom]
Opto Diode Corp ODD-8SMD	1100 nm	400 nm	-25 °C	85 °C	0.44 A/W	Surface Mount	940 nm	50 ns	8 mm˛	170 V
Opto Diode Corp ODD-8SMD-DF			-25 °C	85 °C	0.44 A/W	Surface Mount	940 nm	50 ns	8 mm˛	170 V	730 nm	1100 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Photodiode 940nm 50ns

Technical documentation and resources

No documents available
