UMZ1NT1

Active

ON Semiconductor

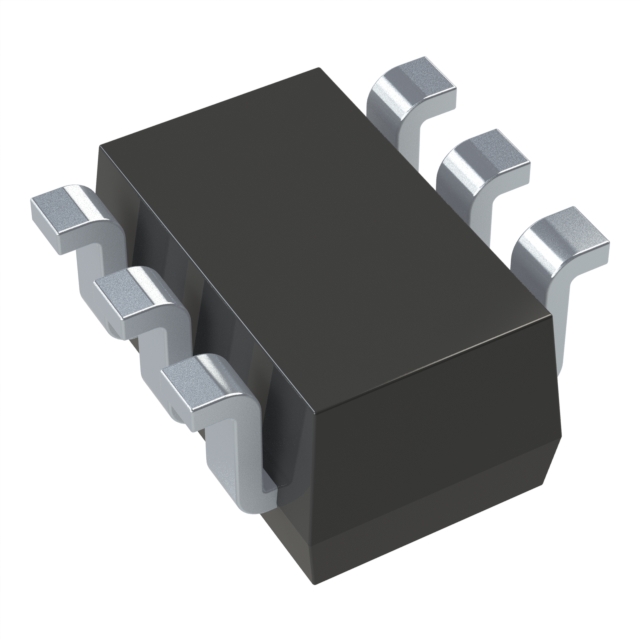

TRANS NPN/PNP 50V 0.2A SOT363

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Package Drawing-419B-02-SC-88 2.00x1.25x0.90, 0.65P +1

UMZ1NT1

Active

ON Semiconductor

TRANS NPN/PNP 50V 0.2A SOT363

Deep-Dive with AI

DocumentsDatasheet Package Drawing-419B-02-SC-88 2.00x1.25x0.90, 0.65P +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UMZ1NT1

Current - Collector (Ic) (Max) [Max]	200 mA
DC Current Gain (hFE) (Min) @ Ic, Vce	200 hFE
Frequency - Transition	114 MHz, 142 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	6-TSSOP, SC-88, SOT-363
Power - Max [Max]	250 mW
Supplier Device Package	SC70-6, SC-88, SOT-363
Transistor Type	1 NPN, 1 PNP
Vce Saturation (Max) @ Ib, Ic	300 mV, 250 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

UMZ1 Series

NPN PNP Bipolar Transistor

Part	Power - Max [Max]	Vce Saturation (Max) @ Ib, Ic	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Frequency - Transition	DC Current Gain (hFE) (Min) @ Ic, Vce	Transistor Type	Current - Collector (Ic) (Max) [Max]	Mounting Type
ON Semiconductor UMZ1NT1	250 mW	250 mV, 300 mV	-55 °C	150 °C	SC-88, SC70-6, SOT-363	6-TSSOP, SC-88, SOT-363	50 V	114 MHz, 142 MHz	200 hFE	1 NPN, 1 PNP	200 mA	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UMZ1 Series

The Dual NPN PNP Bipolar Transistor is designed for general purpose amplifier applications. It is housed in the SOT-363/SC-88 package, which is designed for low power surface mount applications.
