CDRH60D45BT150NP-331MC
ActiveSumida America Components Inc.
FIXED IND 330UH 490MA 1.16OHM SM
CDRH60D45BT150NP-331MC
ActiveSumida America Components Inc.
FIXED IND 330UH 490MA 1.16OHM SM
Description
General part information
CDRH60D45BT150NP-331MC

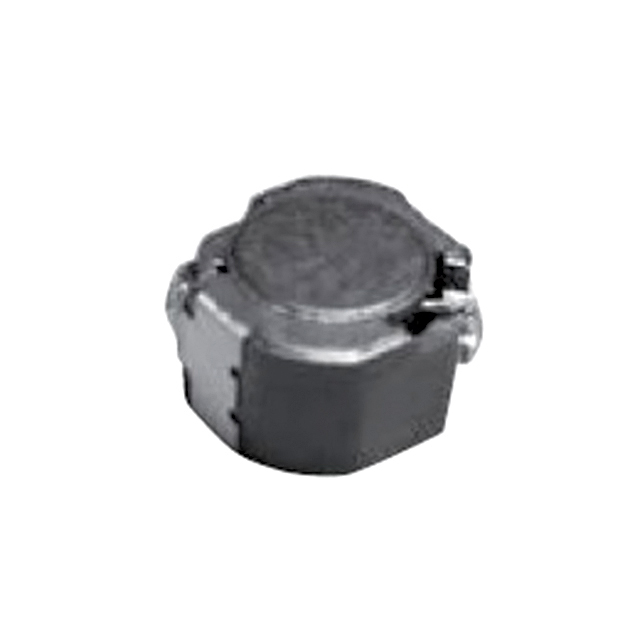

330 µH Shielded Inductor 490 mA 1.16Ohm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDRH60D45BT150NP-331MC |
|---|---|
| Current - Saturation (Isat) | 0.5 mA |
| Current Rating | 490 mA |
| DC Resistance (DCR) | 1.16 Ohm |
| Height - Seated (Max) | 0.189 in |
| Inductance | 330 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.26 in |
| Size / Dimension Width | 0.248 in |
| Tolerance | 20 % |
