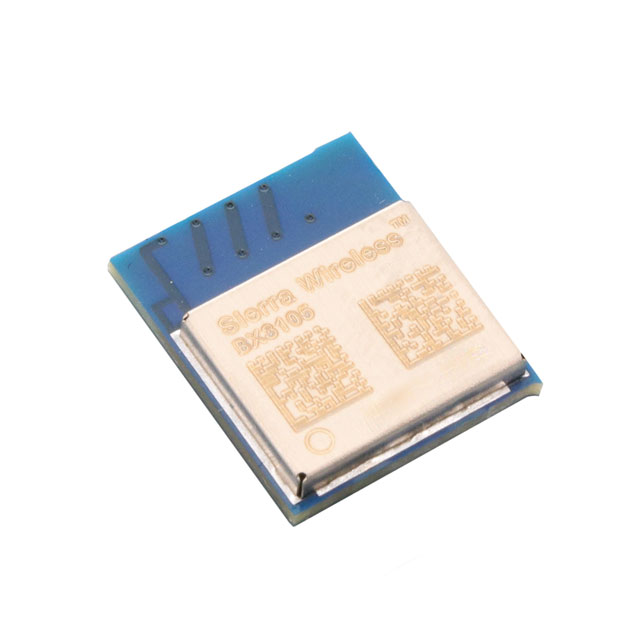

1104231 BX3105

Obsolete

Sierra Wireless

RF TXRX MOD BT WIFI TH SMD

Search across all available documentation for this part.

Obsolete

Sierra Wireless

RF TXRX MOD BT WIFI TH SMD

Technical Specifications

Parameters and characteristics for this part

RF TXRX MOD BT WIFI TH SMD

Part	Current - Receiving	Serial Interfaces	Package / Case	Frequency [Min]	Frequency [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Type	Data Rate	Power - Output	Modulation	Protocol	Mounting Type	Sensitivity	Current - Transmitting	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard
Sierra Wireless 1104231 BX3105	85 mA	I2C, I2S, PWM, SPI, UART	Module	2.4 GHz	2.485 GHz	3.6 V	1.8 V	Integrated, Trace	150 Mbps	18 dBm	CCK, DSSS, OFDM	802.11b/g/n, Bluetooth 4.2	Surface Mount	-98 dBm	225 mA	85 °C	-40 °C	Bluetooth, WiFi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bluetooth, WiFi 802.11b/g/n, Bluetooth 4.2 Transceiver Module 2.4GHz ~ 2.485GHz Integrated, Trace Surface Mount
