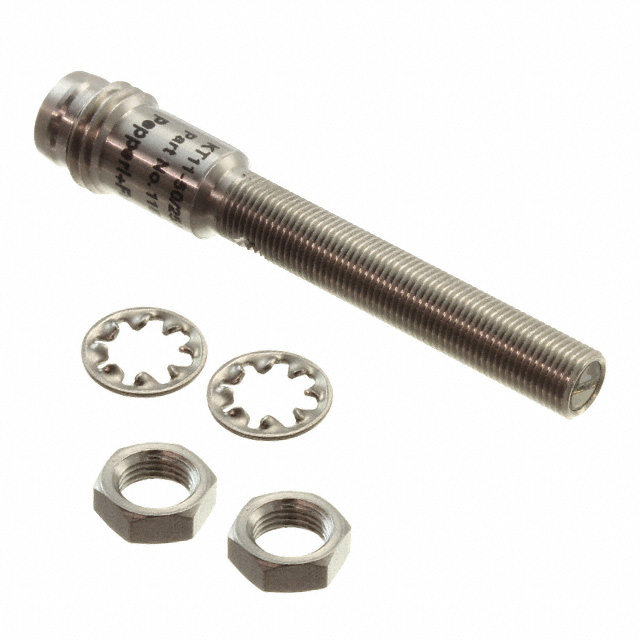

KT11-50/25/98A/103
ObsoletePepperl+Fuchs, Inc.
PHOTO DIFFUSED 50MM PNP
KT11-50/25/98A/103
ObsoletePepperl+Fuchs, Inc.
PHOTO DIFFUSED 50MM PNP
Description
General part information
KT11-50/25/98A/103
Diffuse Optical Sensor 0.000" ~ 1.969" (0mm ~ 50mm) PNP - Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | KT11-50/25/98A/103 |
|---|---|
| Connection Method | M8, Connector |
| Ingress Protection | IP67 |
| Light Source | Yellow LED |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | 0 °C |
| Output Configuration | PNP - Light-ON |
| Response Time | 3 ms |
| Sensing Distance Maximum | 1.969 " |
| Sensing Distance Minimum | 0 cm |
| Sensing Method | Diffuse |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
