Description
General part information

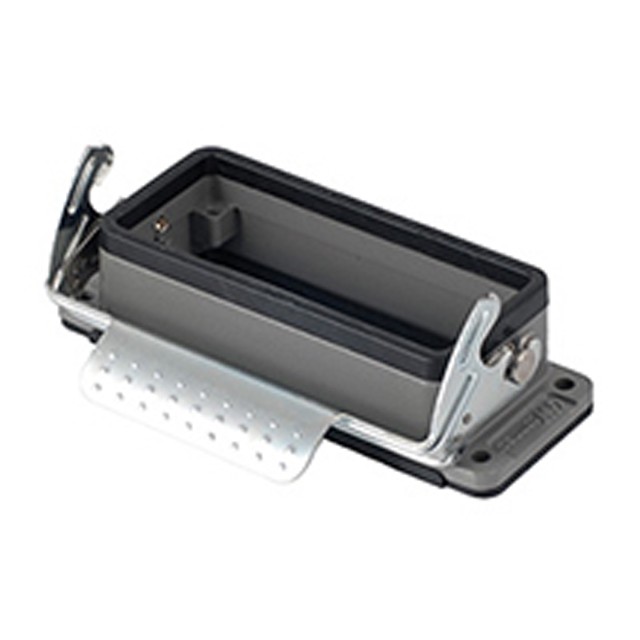

0936011571
10B HV BULK.HOUS. 1LEV
Technical Specifications
Parameters and characteristics for this part
| Specification | 0936011571 |
|---|---|
| Connector Type | Base - Panel Mount |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP66 |
| Lock Location | Locking Clip (1) on Base Bottom |
| Size | 10B |
| Size / Dimension Height | 1.161 in |
| Size / Dimension Length | 3.76 in |
| Size / Dimension Width | 1.823 in |
| Style | Bottom Entry |
