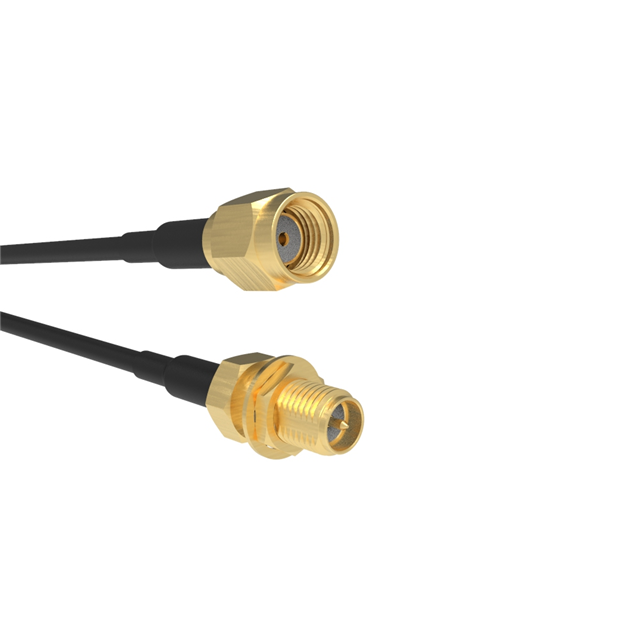

Specification	095-902-535M100

1st Connector	RP-SMA Jack
1st Connector Mounting Feature	Front Side Nut, Bulkhead
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Male
2nd Connector	RP-SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG, 316
Color	Black
Features	Shielded
Frequency - Max	6000 MHz
Length	39.4 in
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Overall Impedance	50 Ohms
Style	RP-SMA

095-902 Series

...

Part	1st Contact Gender	Style	2nd Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Type	Cable Type Size	Cable Type	1st Connector	Overall Impedance	Color	Frequency - Max	Length	2nd Connector	Cable Impedance	Features	Cable Outer Diameter	1st Connector Mounting Feature	Operating Temperature (Min)	Operating Temperature (Max)	2nd Connector Mounting Feature	Ingress Protection Description	Ingress Protection IP Rating	Length (ft)
McGill Microwave Systems 095-902-449-012	Male	SMA	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	0.085	Hand Formable	SMA Plug	50 Ohms	Gray	18 GHz	12 in	SMA Plug
McGill Microwave Systems 095-902-475M050	Male	SMA	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	195	LMR	SMA Plug	50 Ohms	Black	6000 MHz	19.69 in	SMA Plug	50 Ohms	Shielded
McGill Microwave Systems 095-902-546-250	Male	AMC RP-SMA U.FL (UMCC)	Free Hanging (In-Line)	Female	Panel Mount	1.13	1.13mm OD Coaxial Cable Coaxial Cable OD Coaxial Cable	RP-SMA Jack	50 Ohms	Black	6000 MHz	9.843 in	AMC Plug Right Angle U.FL (UMCC)			1.13 mm	Bulkhead Rear Side Nut
McGill Microwave Systems 095-902-480-036	Male	SMA	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	240	LMR	Right Angle SMA Plug	50 Ohms	Black	6000 MHz	36 in	SMA Plug	50 Ohms	Shielded
McGill Microwave Systems 095-902-481-036	Female	SMA	Free Hanging (In-Line)	Male	Panel Mount	240	LMR	SMA Jack	50 Ohms	Black	6000 MHz	36 in	SMA Plug	50 Ohms	Shielded		Bulkhead Front Side Nut
McGill Microwave Systems 095-902-450-018	Male	SMA	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	0.141	Hand Formable	SMA Plug	50 Ohms	Gray	18 GHz	18 in	SMA Plug
McGill Microwave Systems 095-902-535-006	Male	RP-SMA	Free Hanging (In-Line)	Female	Panel Mount		316 RG	RP-SMA Jack	50 Ohms	Clear	6000 MHz	0.5 ft	RP-SMA Plug	50 Ohms	Shielded		Bulkhead Front Side Nut	-65 °C	165 °C
McGill Microwave Systems 095-902-526M300	Female	N-Type SMA	Panel Mount	Male	Free Hanging (In-Line)		58 RG	N-Type Jack	50 Ohms		3 GHz	118.1 in	SMA Plug	50 Ohms						Bulkhead - Front Side Nut
McGill Microwave Systems 095-902-463-010	Female	Cable SMA			Free Hanging (In-Line)		085C UT	SMA Jack	50 Ohms	Gray	18 GHz	10 in	Cable (Round)		Shielded			-20 °C	75 °C
McGill Microwave Systems 095-902-507M200	Female	SMA	Free Hanging (In-Line)	Male	Panel Mount	200	LMR	SMA Jack	50 Ohms	Black	8 GHz		Right Angle SMA Plug	50 Ohms			Bulkhead Front Side Nut				Dust Tight Waterproof	IP67	6.6 ft
