Description
General part information

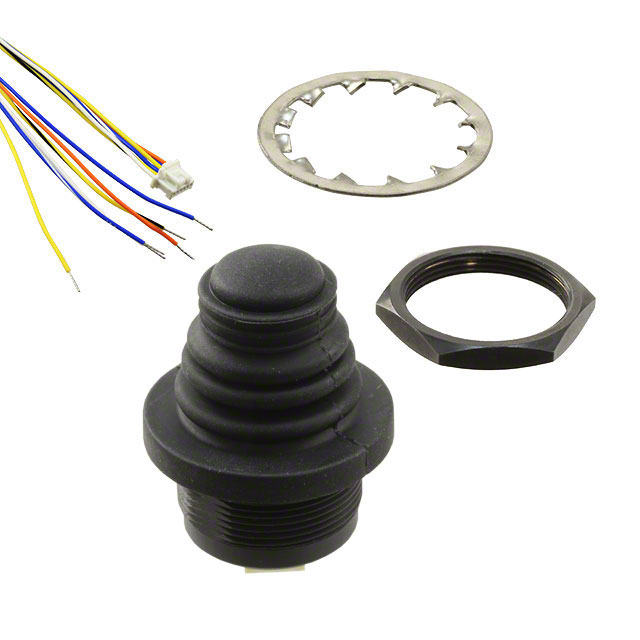

HS6T24SA
Thumbstick, 2 - Axis Digital (Mechanical Switch) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | HS6T24SA |
|---|---|
| Actuator Type | Pushbutton |
| Axis Count | 2 Axis |
| Contact Finish | Silver |
| Current Rating | 100 mA |
| Electrical Life (Cycles) | 100000 Cycles |
| Ingress Protection Description | Water Resistant, Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP69K, IP68 |
| Mechanical Life (Cycles) | 300000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 567 gf |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output | Digital (Mechanical Switch) |
| Panel Cutout Diameter | 25.02 mm |
| Panel Cutout Shape | Circular |
| Switch Function | 4-Way Directional, Center Select |
| Termination Style | Wire Leads with Connector |
| Type | 2 - Axis, Thumbstick |
| Voltage Rating - DC | 30 V |
