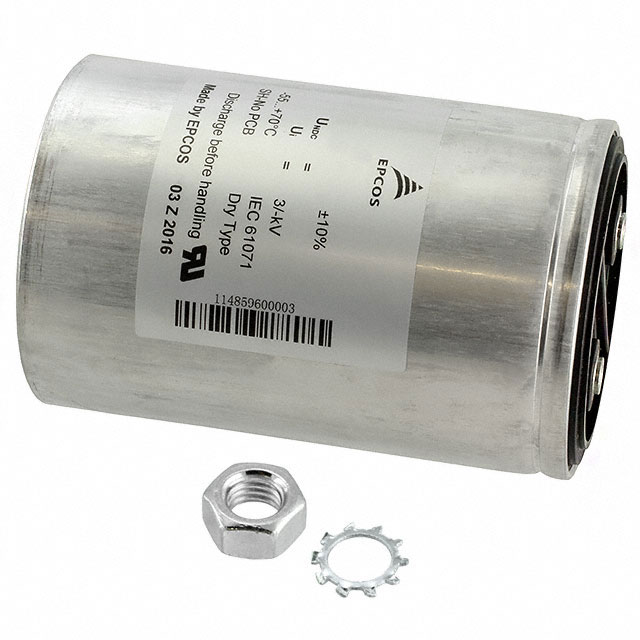

Specification	B25620B1427K323

Applications	DC Filtering, DC Link
Capacitance	420 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	2.6 mOhm
Height - Seated (Max)	4.724 in
Lead Spacing	1.969 in
Mounting Type	Chassis, Stud Mount
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Size / Dimension Diameter	4.567 in
Termination	Threaded, Female
Tolerance	10 %
Voltage Rating - DC	1320 V
