1001011-04

Active

KYOCERA AVX

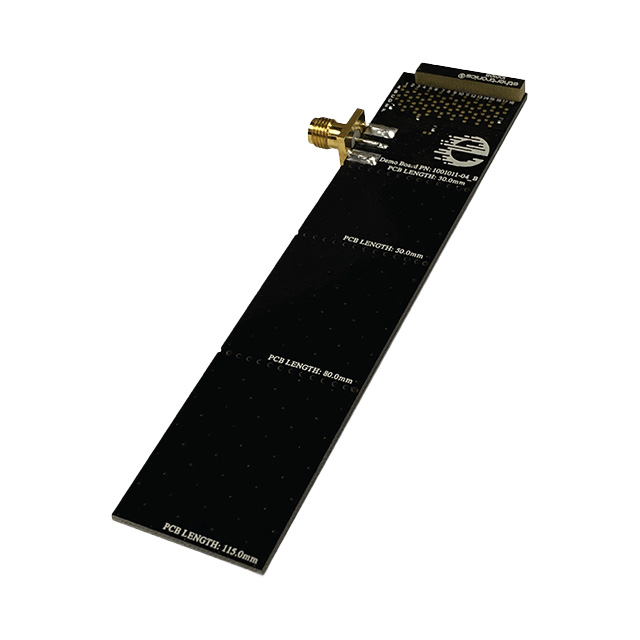

DEMO BOARD, FR4 ANTENNA, ISM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

KYOCERA AVX

DEMO BOARD, FR4 ANTENNA, ISM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1001011-04	1001011 Series

Antenna Type	-	Chip
Applications	-	GPS
For Use With/Related Products	1001011	1001011
Frequency (Center/Band)	-	1.561 - 1.575 GHz
Frequency [Max]	928 MHz	928 MHz
Frequency [Min]	868 MHz	868 MHz
Frequency Group	-	2 GHz
Frequency Group	-	1 GHz
Frequency Group	-	UHF
Frequency Range	-	1.57 GHz
Frequency Range	-	1.58 GHz
Gain	-	-1.8 dBi
Height (Max)	-	0.13 in
Height (Max)	-	3.3 mm
Mounting Type	-	Surface Mount
Number of Bands	-	2
Power - Max	-	2 W
RF Family/Standard	-	Navigation
Supplied Contents	Board(s)	Board(s)
Termination	-	Solder
Type	Antenna	Antenna
VSWR	-	2

DEMO BOARD, FR4 ANTENNA, ISM ROHS COMPLIANT: YES

Part	Type	Frequency [Min]	Frequency [Max]	For Use With/Related Products	Supplied Contents	Termination	Height (Max) [Max] [z]	Height (Max)	Antenna Type	VSWR	Mounting Type	Gain	Number of Bands	Power - Max [Max]	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Frequency Range [Min]	Frequency Range [Max]	RF Family/Standard	Frequency (Center/Band)	Applications
KYOCERA AVX 1001011-04	Antenna	868 MHz	928 MHz	1001011	Board(s)
KYOCERA AVX 1001011						Solder	0.13 in	3.3 mm	Chip	2	Surface Mount	-1.8 dBi	2	2 W	2 GHz	1 GHz	UHF	1.57 GHz	1.58 GHz	Navigation	1.561 GHz, 1.575 GHz	GPS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 17.63
		10	$ 17.59
Newark	Each	1	$ 22.38

General part information

1001011 - Antenna 868MHz ~ 928MHz Evaluation Board
