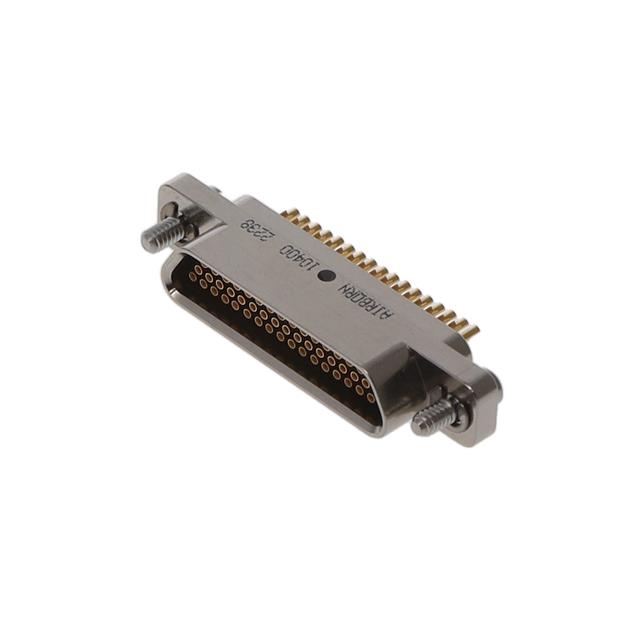

MQ-322-051-213-4300
ActiveAirBorn, a Molex company
CONN MICRO-D RCPT 51POS SLDR CUP
MQ-322-051-213-4300
ActiveAirBorn, a Molex company
CONN MICRO-D RCPT 51POS SLDR CUP
Description
General part information
MQ-322-051-213-4300
51 Position D-Type, Micro-D Receptacle, Female Sockets Connector
Technical Specifications
Parameters and characteristics for this part
| Specification | MQ-322-051-213-4300 |
|---|---|
| Connector Layout Pitch | 0.05 |
| Connector Layout Row to Row | 0.05 |
| Connector Style | Micro-D, D-Type |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating | 3 A |
| Dielectric Material | Polyphenylene Sulfide (PPS) |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 51 |
| Number of Rows | 3 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Primary Material | Metal |
| Shell Material, Finish | Nickel Plated, Aluminum Alloy, Electroless |
| Termination | Solder Cup |
