N845X-03M-8L-MG
ActiveEaton Tripp Lite
FIBER OPTIC CABLE ASSEMBLIES MM MPO/LC FBR CBL, 3M
N845X-03M-8L-MG
ActiveEaton Tripp Lite
FIBER OPTIC CABLE ASSEMBLIES MM MPO/LC FBR CBL, 3M
Description
General part information
N845X-03M-8L-MG

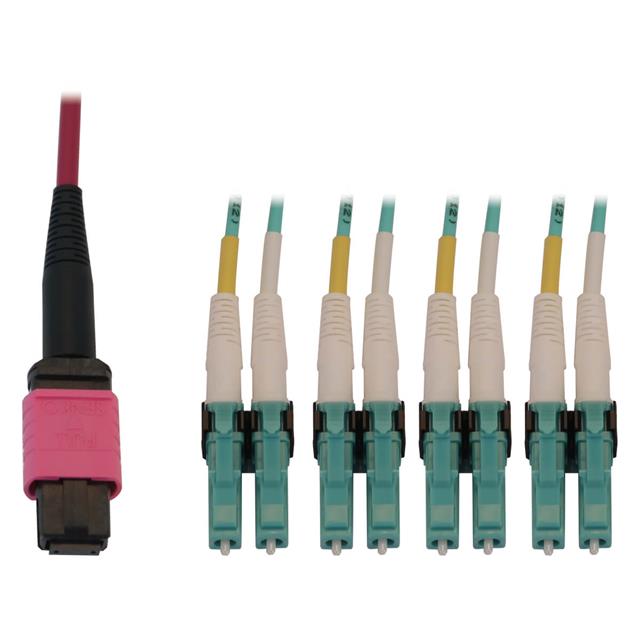

Cable Fiber Optic MTP To LC Duplex (4) 50/125 9.8' (3.0m)
Technical Specifications
Parameters and characteristics for this part
| Specification | N845X-03M-8L-MG |
|---|---|
| 1st Connector | MTP |
| 2nd Connector | LC Duplex |
| 2nd Connector Count | 4 |
| Bend Radius | 10 mm |
| Color - Cable | Magenta |
| Color - Connectors | Aqua, Black, Magenta |
| Fiber Cladding Diameter | 125 µm |
| Fiber Core Diameter | 50 µm |
| Insertion Loss | 0.3 dB |
| Jacket (Insulation) Material | Low Smoke Zero Halogen (LSZH) |
| Length - Overall | 9.8 ft |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Type | OM4, Multimode |
