B65511A0000Y048
ActiveEPCOS - TDK Electronics
FERRITE CORE P 1UH N48 2PCS
B65511A0000Y048
ActiveEPCOS - TDK Electronics
FERRITE CORE P 1UH N48 2PCS
Description
General part information
B65511A0000Y048

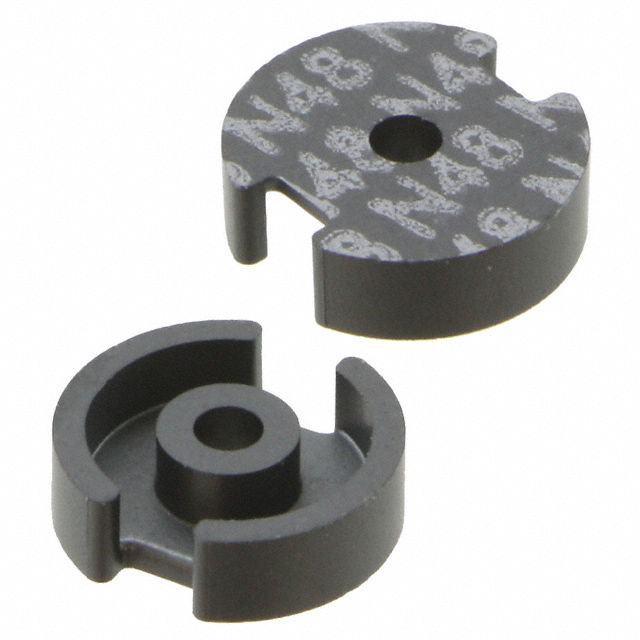

Uncoated N48 Ferrite Core P (Pot Core) Type Length Width 0.289" (7.35mm) Diameter 0.083" (2.10mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | B65511A0000Y048 |
|---|---|
| Core Factor (ΣI/A) | 1.43 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 1.43 mm⁻¹ |
| Core Type | P (Pot Core) |
| Diameter | 0.289 in |
| Effective Area (Ae) | 7 mm² |
| Effective Length (le) | 10 mm |
| Effective Magnetic Volume (Ve) | 70 mm³ |
| Effective Permeability (µe) | 1140 |
| Finish | Uncoated |
| Gap | Ungapped |
| Height | 0.083 in |
| Inductance Factor (Al) | 1 µH |
| Material | N48 |
| Package Length | 7 mm |
| Package Name | P |
| Package Width | 4 mm |
| Tolerance (Negative) | 30 % |
| Tolerance (Positive) | 40 % |
