1420034
ActivePhoenix Contact

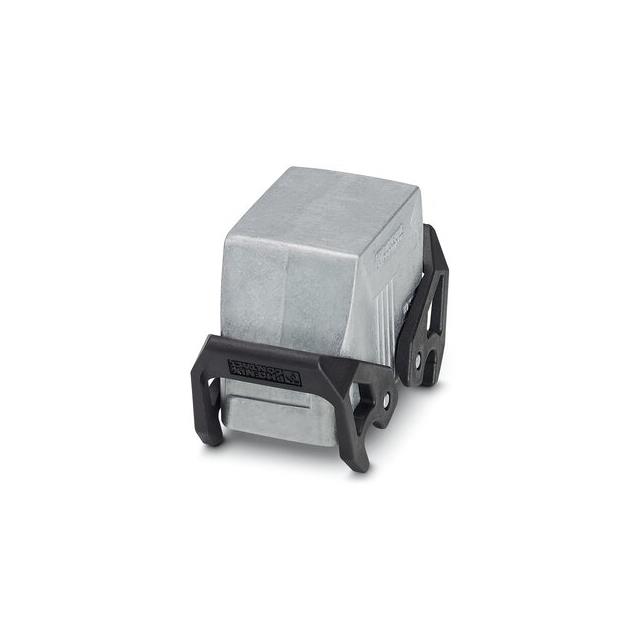

HC-STA-B10-HLWD-BLANK-EL-AL
1420034
ActivePhoenix Contact
HC-STA-B10-HLWD-BLANK-EL-AL
Description
General part information
1420034
Hood Connector B10 IP66/IP67 - Dust Tight, Water Resistant, Waterproof
Technical Specifications
Parameters and characteristics for this part
| Specification | 1420034 |
|---|---|
| Connector Type | Hood |
| Features | Salt Water Resistant |
| Housing Color | Gray |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Lock Location | Locking Clip (2) on Hood |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B10 |
| Size / Dimension Height | 2.244 in |
| Size / Dimension Length | 2.874 in |
| Size / Dimension Width | 1.732 in |
