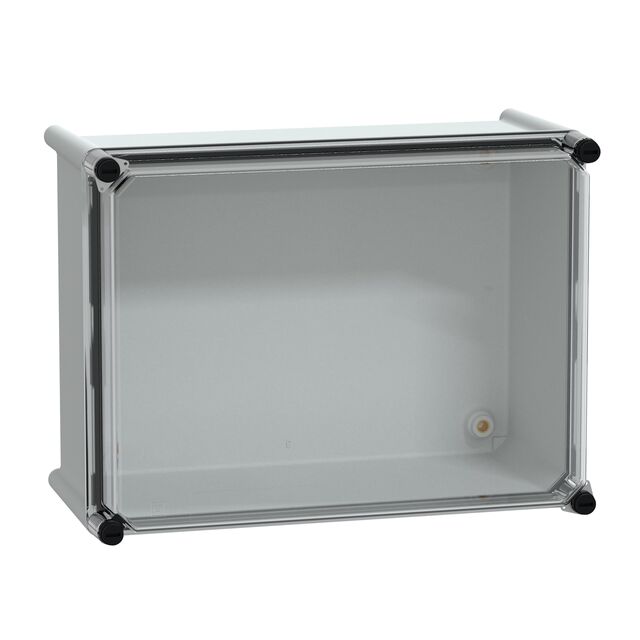

NSYPLS2736G
ActiveSCHNEIDER ELECTRIC
BOX FIBER 14.17"L X 10.63"W
NSYPLS2736G
ActiveSCHNEIDER ELECTRIC
BOX FIBER 14.17"L X 10.63"W
Description
General part information
NSYPLS2736G
Box Fiberglass/Polyester Gray, Clear Cover Cover Included 14.173" L x 10.630" W (360.00mm x 270.00mm) X 7.087" (180.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYPLS2736G |
|---|---|
| Area (L x W) | 151 in² |
| Color | Clear Cover, Gray |
| Container Type | Box |
| Design | Cover Included |
| Height | 7.087 in |
| Material | Fiberglass, Polyester |
| Ratings | NEMA 4X, 13, IP66 |
| Size / Dimension Length | 14.173 in |
| Size / Dimension Width | 10.63 in |
